product Image

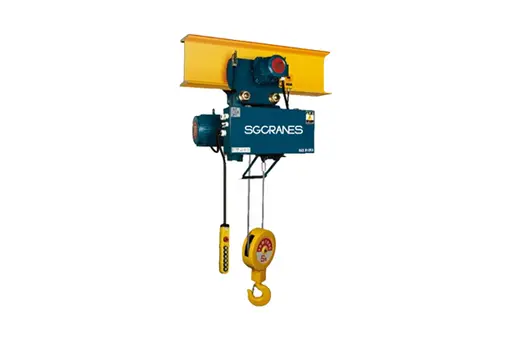

와이어 호이스트 (WIRE ROPE HOIST (MONORAIL))
Model Name
SN 0.5-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133330
Product Name
와이어 호이스트 (WIRE ROPE HOIST (MONORAIL))
Model Name
SN 0.5-M, SN 1-M, SN 2-M, SN 2.8-M, SN 3-M, SN 5-M
Size
-
Weight
-
Product Details

Regular Type Hoist with Motor Driven Trolley

Table

Model SN 0.5-M SN 1-M SN 2-M SN 2.8-M SN 3-M SN 5-M
Capacity (ton) 1/2 1 2 2.8 3 5
Type
Hoisting Speed
 High-High SN 0.5-H6(12)-MH SN 1-H6(12)-MH SN 2-H6(12)-MH SN 2.8-H6(12)-MH SN 3-H6(12)-MH SN 5-H6(12)-MH
High-Low SN 0.5-H6(12)-ML SN 1-H6(12)-ML SN 2-H6(12)-ML SN 2.8-H6(12)-ML SN 3-H6(12)-ML SN 5-H6(12)-ML
Traversing
 High-High SN 0.5-L6(12)-MH SN 1-L6(12)-MH SN 2-L6(12)-MH SN 2.8-L6(12)-MH SN 3-L6(12)-MH SN 5-L6(12)-MH
High-Low SN 0.5-L6(12)-ML SN 1-L6(12)-ML SN 2-L6(12)-ML SN 2.8-L6(12)-ML SN 3-L6(12)-ML SN 5-L6(12)-ML
Hoist
 Max. lift(m) 6(12)
Hoisting Speed
(m/min)
 High Speed 50/60(Hz) 10/12 10/12 8.4/10 7.5/9 7.5/9 4.7/5.6
Low Speed 50/60(Hz) 5/6 5/6 4.2/5 3.7/4.5 3.7/4.5 3.5/4.2
Hoisting Motor
(Kw x P)
 High Speed 1.2 x 4 2.4 x 4 3.7 x 4 4.8 x 4 5.5 x 4 5.5 x 6
Low Speed 0.6 x 8 1.2 x 8 1.8 x 8 2.4 x 8 2.8 x 8 4.2 x 8
Wire Rope
 Construction 6 x 37
Die(mm) x No.of Ropes 6 x 2 8 x 2 10 x 2 12.5 x 2 12.5 x 2 16 x 2
Brake DC Magnet Disc Brake
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13/16
Traversing
Motor (Kw x P)
 High Speed 0.4 x 4 0.4 x 4 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.2 x 6 0.2 x 6 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake
Dimensions
(approx.)(mm)
 H 705 815 980 1115 1115 1325
A 370(465) 405(505) 465(565) 520(620) 520(620) 605(705)
B 355(450) 380(480) 410(510) 440(540) 440(540) 500(585)
D 255 275 310 365 380 415
G 275 255 260 260 260 275
K 200 200 225 225 225 225
I-Beam and Spacing (mm)
 a x b x c C S R U V C S R U V C S R U V C S R U V C S R U V C S R U V
200 x 100 x 7 385 150 38 46 144 385 170 38 46 144 - - - - - - - - - - - - - - - - - - - -
250 x 125 x 7.5 395 150 30 71 153 395 170 30 71 153 445 205 24 71 182 445 210 23 71 182 445 210 23 71 182 455 250 398 61 222
300 x 150 x 10 410 150 28 96 155 410 170 28 96 155 460 205 24 96 182 460 210 23 96 182 460 210 23 96 182 465 250 37 86 224
450 x 175 x 13 - - - - - - - - - - - - - - - - - - - -           480 250 34 111 228
Min.Radius of Curvature(m) 1.5 1.5 1.8 1.8 1.8 2.3
Weight (approx.) (kg) 147(167) 190(218) 278(314) 374(418) 374(418) 577(642)
