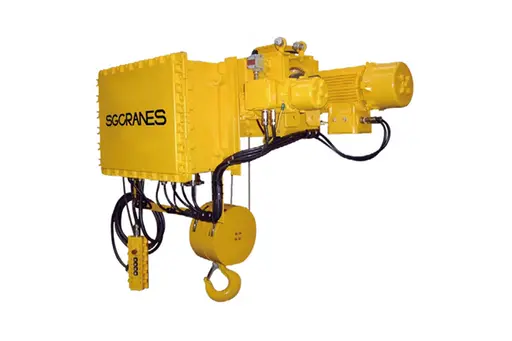

product Image
방폭 호이스트 (EXPLOSION PROOF HOIST (MONORAIL))
Model Name
Z-SN 1-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133357
Product Name
방폭 호이스트 (EXPLOSION PROOF HOIST (MONORAIL))
Model Name
Z-SN 1-M, Z-SN 2-M, Z-SN 3-M, Z-SN 5-M
Size
-
Weight
-
Product Details

Monorail

Table

Model Z-SN 1-M Z-SN 2-M Z-SN 3-M Z-SN 5-M
Capacity (ton) 1 2 3 5
Hoist
 Max. lift(m) 12
Hoisting Speed
(m/min)
 High Speed 50/60(Hz) 9.2/11 4.6/5.5 5/6 5/6
Low Speed 50/60(Hz) 6.1/7.3 3.1/3.7 3.3/4 3.3/4
Hoisting Motor
(Kw x P)
 High Speed 2.2 x 4 2.2 x 4 3.7 x 4 5.5/4
Low Speed 1.5 x 6 1.5 x 6 2.2 x 6 3.7 x 6
Wire Rope
 Construction 6 x 19 6 x WS(36) 6 x WS(36) 6 x SES(37)
Die(mm) x No.of Ropes 6 x 4 8 x 4 9 x 4 11.2 x 4
Brake DC magnet disc
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13.3/16
Traversing
Motor (Kw x P)
 High Speed 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake
Dimensions
(approx.)(mm)
 H 415 420 420 510
A 950 950(1150) 950(1150) 950(1150)
B 465 465 465 510
D 390 390 390 470
G 500 500 600 630
K 740 785 785 935
I-Beam and Spacing (mm)
 a x b x t C S F T U C S F T U C S F T U C S F T U
200 x 100 x 7 710 39 185 46 254 717 34 200 46 267 717 34 217 46 267 - - - - -
250 x 125 x 7.5 723 37 185 71 256 730 32 200 71 269 730 32 217 71 269 737 40 248 60 286
300 x 150 x 10 736 31 185 96 262 742 26 200 96 275 742 26 217 96 275 750 35 248 85 292
450 x 175 x 13 - - - - - - - - - -           762 26 248 110 300
Weight (approx.) (kg) 1.5 1.8 1.8 2.3
Traversing Rail (kg/m) 340 450 590 840
