와이어 호이스트 (WIRE ROPE HOIST (LOW HEAD ROOM(MONO & DOUBLE)))
Model Name
SL0.5-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133332
Product Name
와이어 호이스트 (WIRE ROPE HOIST (LOW HEAD ROOM(MONO & DOUBLE)))
Model Name
SL0.5-M, SL1-M, SL2-M, SL2.8-M, SL3-M, SL5-M
Size
-
Weight
-
Product Details

Low Head Type Hoist with Motor Driven Trolley

Table

Model SL0.5-M SL1-M SL2-M SL2.8-M SL3-M SL5-M
Capacity (ton) 1/2 1 2 2.8 3 5
Type
Hoisting Speed
 High-High SL 0.5-H6-MH SL 1-H6-MH SL 2-H6-MH SL 2.8-H6-MH SL 3-H6-MH SL 5-H6-MH
High-Low SL 0.5-H6-ML SL 1-H6-ML SL 2-H6-ML SL 2.8-H6-ML SL 3-H6-ML SL 5-H6-ML
Traversing
 High-High SL 0.5-L6-MH SL 1-L6-MH SL 2-L6-MH SL 2.8-L6-MH SL 3-L6-MH SL 5-L6-MH
High-Low SL 0.5-L6-ML SL 1-L6-ML SL 2-L6-ML SL 2.8-L6-ML SL 3-L6-ML SL 5-L6-ML
Hoist
 Max. lift(m) 6
Hoisting Speed
(m/min)
 High Speed 50/60(Hz) 10/12 10/12 8.4/10 7.5/9 7.5/9 4.7/5.6
Low Speed 50/60(Hz) 5/6 5/6 4.2/5 3.7/4.5 3.7/4.5 3.5/4.2
Hoisting Motor
(Kw x P)
 High Speed 1.2 x 4 2.4 x 4 3.7 x 4 4.8 x 4 5.5 x 4 5.5 x 6
Low Speed 0.6 x 8 1.2 x 8 1.8 x 8 2.4 x 8 2.8 x 8 4.2 x 8
Wire Rope
 Construction 7 x 19 6 x 37
Die(mm) x No.of Ropes 4 x 4 6 x 4 8 x 4 9 x 4 9 x 4 11.2 x 4
Brake DC Magnet Disc Brake
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13/16
Traversing
Motor (Kw x P)
 High Speed 0.4 x 4 0.4 x 4 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.2 x 6 0.2 x 6 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake

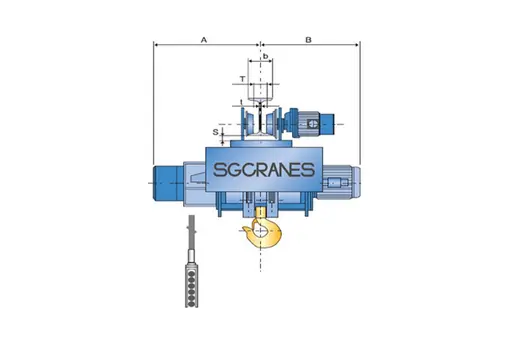

Dimensions
(approx.)(mm)
 H 550 550 620 620 620 800
A 465 505 590 620 620 705
B 450 480 510 540 540 585
C 405 405 435 495 510 585
D 245 290 385 395 395 465
G 255 255 260 260 260 275
K 200 200 225 225 225 275
I-Beam and Spacing (mm)
 a x b x c S T U S T U S T U S T U S T U S T U
200 x 100 x 7 38 45 144 38 46 144 - - - - - - - - - - - -
250 x 125 x 7.5 30 71 153 30 71 153 22 71 182 23 71 18 22 371 182 - - -
300 x 150 x 10 28 96 155 30 71 153 22 96 182 23 96 182 23 96 182 26 86 224
450 x 175 x 13 - - - - - - - - - - - -       23 111 228
Min.Radius of Curvature(m) 1.5 1.5 1.8 1.8 1.8 2.3
Weight (approx.) (kg) 175 200 350 440 440 730
