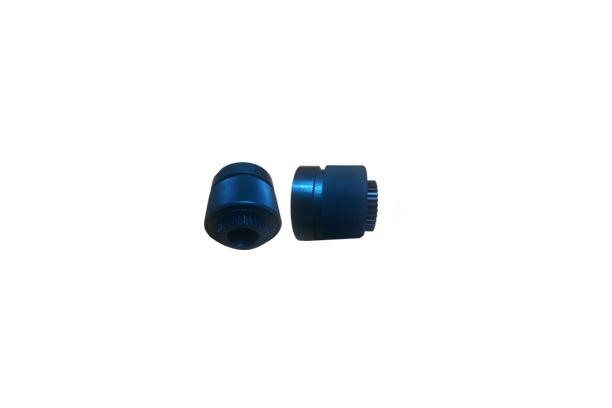

Double Type Quick Clutch Coupling
Model Name
120-QCC-0001
Series
Quick Clutch Coupling
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERYPower Transmission Device Manufacturer, Universal Joint, Coupling
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Brand
-
SKU
139028
Product Name
Double Type Quick Clutch Coupling
Model Name
120-QCC-0001, 120-QCC-0002, 120-QCC-0003
Size
-
Weight
-
Product Details

Drawing



Specification

Size
(Hyundai)
Max.Speed
(rpm)
Max.Torque
(kgf.m)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
L
(mm)
120-QCC-0001 1,800 500 116 96 84 84 106 172
120-QCC-0002 1,800 500 116 96 84 84 106 192
120-QCC-0003 1,800 600 122 104 92 92 114 168
