Universal Spindle Type Equipment Kit
Model Name
HH-315-CK-03L
Series
Equipment Kit
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERYPower Transmission Device Manufacturer, Universal Joint, Coupling
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Brand
-
SKU
139026
Product Name
Universal Spindle Type Equipment Kit
Model Name
HH-315-CK-03L, HH-315-CK-03M, HH-315-CK-03C, HH-345-CK-03L, HH-345-CK-03M, HH-345-CK-03C, HH-380-CK-03L, HH-380-CK-03M, HH-380-CK-03C, HH-400-CK-01L, HH-400-CK-01M, HH-400-CK-01C, HH-400-CK-02L, HH-400-CK-02M, HH-400-CK-02C, HH-450-CK-01L, HH-450-CK-01M, HH-450-CK-01C, HH-600-CK-04L, HH-600-CK-04M, HH-600-CK-04C
Size
-
Weight
-
Product Details

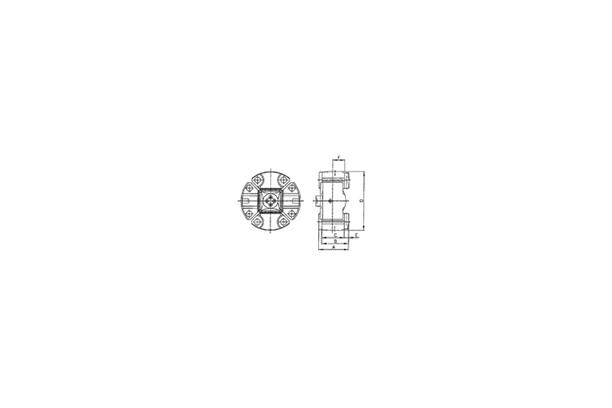

Drawing



Specification

Model No. Material Max.Speed
(rpm)
Max.Torque
(kgf.m)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
HH-315-CK-03L SNCM815 1,800 20,000 310 134 110 Ø110 12 12
HH-315-CK-03M SNCM420 1,700 18,000
HH-315-CK-03C SNCM220 1,500 15,500
HH-345-CK-03L SNCM815 1,800 30,000 341 148 116 Ø123 16 16
HH-345-CK-03M SNCM420 1,700 27,000
HH-345-CK-03C SNCM220 1,500 23,000
HH-380-CK-03L SNCM815 1,800 35,000 373 162 130 Ø136 16 16
HH-380-CK-03M SNCM420 1,700 31,500
HH-380-CK-03C SNCM220 1,500 26,800
HH-400-CK-01L SNCM815 1,500 26,000 200 180 150 Ø400 30 80
HH-400-CK-01M SNCM420 1,350 23,500
HH-400-CK-01C SNCM220 1,200 19,900
HH-400-CK-02L SNCM815 1,800 25,000 390 168 140 Ø136 14 14
HH-400-CK-02M SNCM420 1,700 22,500
HH-400-CK-02C SNCM220 1,500 19,000
HH-450-CK-01L SNCM815 1,500 38,000 290 265 173 Ø450 36 92
HH-450-CK-01M SNCM420 1,350 34,200
HH-450-CK-01C SNCM220 1,200 29,000
HH-600-CK-04L SNCM815 1,800 140,000 592 237 201 Ø202 18 18
HH-600-CK-04M SNCM420 1,700 126,000
HH-600-CK-04C SNCM220 1,500 107,000
