product Image
00F Type France Flexible Coupling
Model Name
90F
Series
France Flexible Coupling
View All
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139023
Product Name
00F Type France Flexible Coupling
Model Name
90F, 100F, 112F, 125F, 140F, 160F, 180F, 200F, 224F, 250F, 280F, 315F, 355F, 400F, 450F, 560F, 630F
Size
-
Weight
-
Product Details

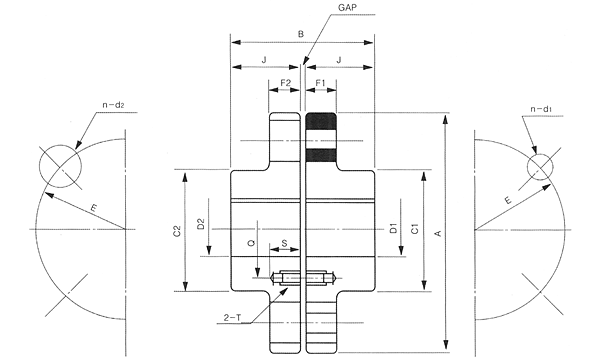

Drawing



Specification

Size HP
per
100
rpm		 Max.
Speed
(rpm)		 Badic
Torque
(kg·cm)		 Bore Dia (mm) Dimensions (mm) Bolt Cplg
wt
(kg)
Max. Min. A B C₁ C₂ E F₂ F₁ J Q T S Gap n d₁ d₂
D₁ D₂ D₁ D₂
 90F 0.74 4,000 50 20 - 90 59 35.5 60 14 28 - - - 3 4 8 19 1.4
 100F 0.14 4,000 100 25 - 100 74 42.5 67 16 35.5 4 10 23 2.1
 112F 0.23 4,000 161 28 16 112 83 50 75 16 40 4 10 23 2.7
 125F 0.35 4,000 250 32 28 18 125 93 56 50 85 18 45 4 14 32 3.5
 140F 0.67 4,000 501 38 35 20 140 103 71 63 100 18 50 6 14 32 4.9
 160F 1.56 4,000 1,120 45 25 160 115 80 115 18 56 8 14 32 6.8
 180F 2.24 3,500 1,607 50 28 180 129 90 132 18 63 8 14 32 9.6
 200F 3.50 3,200 2,503 56 32 200 146 100 145 22.4 71 4 8 20 41 13.2
 224F 5.59 2,850 4,003 63 35 224 164 112 170 22.4 80 8 20 41 18.4
 250F 8.80 2,550 6,302 71 40 250 184 125 180 28 90 8 25 51 26
 280F 14 2,330 10,032 80 50 280 204 140 200 28 40 100 8 28 57 36.5
 315F 22 2,050 16,071 90 63 315 228 160 236 28 40 112 140 M20 51 10 28 57 49.1
 355F 35 1,800 25,032 100 71 355 255 180 260 35.5 56 125 140 5 8 35.5 72 74.9
 400F 56 1,600 40,031 110 80 400 255 200 300 35.5 56 125 140 10 35.5 72 94.3
 450F 88 1,400 63,018 125 90 450 285 224 355 35.5 56 140 140 M22 54 12 35.5 72 127.8
 560F 140 1,150 100,030 140 100 560 325 250 450 35.5 56 160 140 14 35.5 72 206.3
 630F 223 1,000 160,028 160 110 630 365 280 530 35.5 56 180 140 16 35.5 72 277.0
