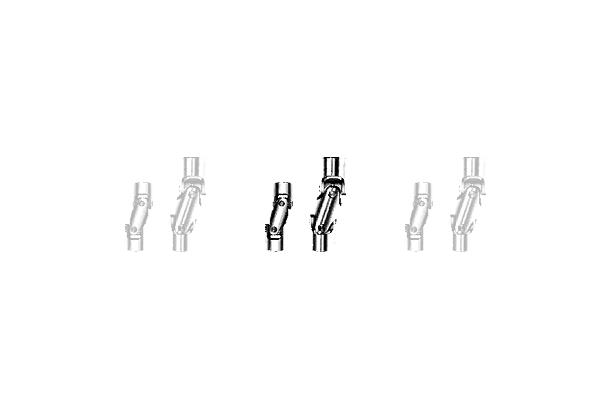

L Type Ball Joint (Square Benk Type)
Model Name
L-6
Series
Ball Joint (Square Benk Type)
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139006
Product Name
L Type Ball Joint (Square Benk Type)
Model Name
L-6, L-8, L-10, L-12, L-14, L-16, L-18, L-20, L-22, L-25, L-30, L-35, L-40, L-45, L-50, L-60
Size
-
Weight
-
Product Details

도면



사양

Size \ Mark 허용 Torque
(kg/m)
동적최대 Torq
(kg/m)
인장파양하중
(kg)
허용곡각
( °)
내경
Ød H7
외경
ØD
전장
L
전장½
L₁
유입량
무게
g
L - 6 0.8 1.6 700 15 6 12 50 25 18.5 40
L - 8 1.5 3.2 1,120 15 8 16 56 28 19 50
L - 10 3.0 7.5 1,180 15 10 20 68 34 24 110
L - 12 4.5 12.0 3,200 15 12 24 84 42 29 210
L - 14 7.0 17.0 3,700 15 14 28 94 47 32 300
L - 16 10.0 25.0 5,300 15 16 32 104 52 35 470
L - 18 13.0 32.0 6,200 15 18 36 120 60 39 670
L - 20 18.0 45.0 7,100 15 20 40 124 62 40 850
L - 22 24.0 60.0 9,400 15 22 44 130 65 42 1,100
L - 25 30.0 80.0 11,250 15 25 50 140 70 43 1,600
L - 30 45.0 115.0 14,300 15 30 60 178 89 54 2,600
L - 35 55.0 180.0 18,500 15 35 70 200 100 58 4,300
L - 40 85.0 250.0 24,000 15 40 80 228 114 67 6,300
L - 45 125.0 350.0 29,500 15 45 90 250 125 74 8,500
L - 50 180.0 490.0 38,000 15 50 100 270 135 80 11,500
L - 60 280.0 650.0 57,500 15 60 120 300 150 85 19,000
