This product is manufactured by
HYUNDAI INDUSTRIAL MACHINERY
Manufacturer information
HYUNDAI INDUSTRIAL MACHINERY
Power Transmission Device Manufacturer, Universal Joint, Coupling
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139004
Product Name
Ball Joint (Drum Type)
Model Name
BJ 75, BJ 95, BJ 125, BJ 150, BJ 175, BJ 200, BJ 225, BJ 250, BJ 300
Size
-
Weight
-
Product Details

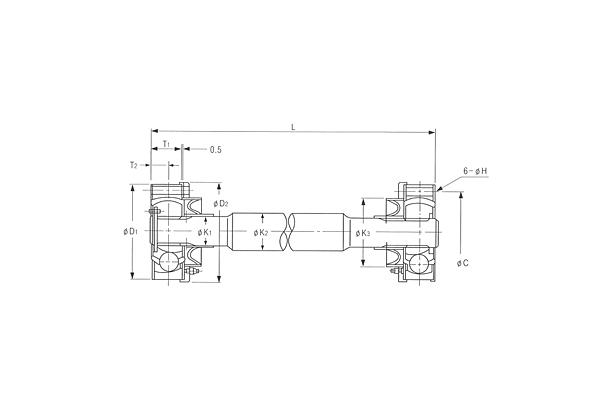

Drawing
Specification
| SIZE ＼ Mark | ØD1 | ØD2 | ØK1 | ØK2 | ØK3 | ØC | ØH | ØT1 | ØT2 | L | Max. Angle |
Torque (kgf · m) |
| BJ 75 | 80 | 85 | 22.33 | 25 | 51 | 66 | 9 | 24.4 | 12.2 | 220 | 14° | 60 |
| BJ 95 | 95 | 100 | 26.36 | 30 | 64 | 80 | 9 | 32.0 | 16.0 | 250 | 14° | 115 |
| BJ 125 | 125 | 130 | 36.33 | 40 | 82 | 106 | 11 | 40.6 | 20.3 | 280 | 16° | 280 |
| BJ 150 | 146 | 151 | 45.60 | 50 | 102 | 124 | 13 | 48.0 | 24.0 | 295 | 16° | 480 |
| BJ 175 | 165 | 170 | 51.60 | 55 | 112 | 140 | 15 | 51.0 | 25.5 | 340 | 16° | 765 |
| BJ 200 | 190 | 196 | 59.50 | 65 | 130 | 159 | 14 | 60.0 | 30.0 | 360 | 16° | 1140 |
| BJ 225 | 212 | 218 | 65.40 | 70 | 152 | 180 | 14 | 65.0 | 32.5 | 400 | 16° | 1500 |
| BJ 250 | 230 | 238 | 74.25 | 80 | 162 | 197 | 18 | 75.0 | 37.5 | 450 | 18° | 2110 |
| BJ 300 | 266 | 273 | 83.40 | 90 | 186 | 225 | 18 | 84.0 | 42.0 | 500 | 18° | 2970 |
