제품 상세 정보

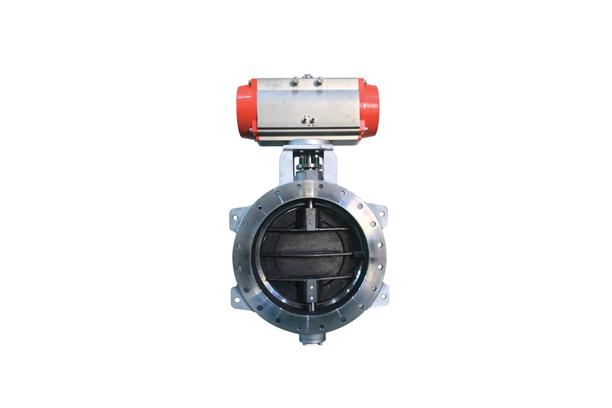

SPECIFICATIONS
| MODEL | DSCR-AR | ||||||
| Application Position | RTV | RBV/RSV | BSV | ASV | EGB-BV | BTV/EGB-SV | |
| Applicable Fluids | Gas | ||||||
| Temperature Range | 20℃ ~ 420℃ | 20℃ ~ 500℃ | |||||
| Actuator Type | Rack & Pinion, Pneumatic | ||||||
| Valve Size | 200A ~ 3200A | 200A ~ 1000A | |||||
| End Connection | JIS / DIN / ISO / ANSI Standard | ||||||
| Material | Body | SS400 | SUS304 | ||||
| Trim | Stainless Steel | ||||||
FEATURES
This valve is designed for pollution environment of Solas rule.
On-off type, proportion control type(Depending on the system)
Criterion of valves work scope for LP SCR system.
– RBV(Reactor By-pass Valve), RSV(Reactor Sealing Valve), RTV(Reactor Throttle Valve), ASV(Ari Sealing Valve), BSV(Blower Sealing Valve), EGB-BV(EGB-By-pass Valve), BTV(Blower Throttle Valve), EGB-SV(EGB-Supply Valve)
