WONCHANG VACUUM
WONCHANG VACUUM

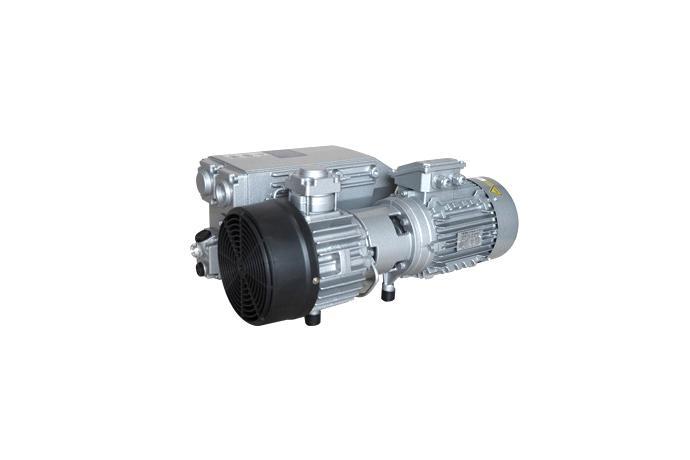

Description
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, Wire mesh Inlet Filter Screen, Vibration Isolator, TEFC Hiigh Efficiency Motor, anti-suck back valve, Oil Lever sigh glass, Gas Ballast Valve ( N&F Only), Spin-on Oil filter.
Optional Equipment : Exhaust pressure Gauge, Level Switch, and hater
Specifications
| Models | 120 | 200 | ||
| Displace-ment | 60Hz | m3/h | 75 | 120 |
| 50Hz | 63 | 100 | ||
| End-Vacuum | F or N Type | mbar | 0.5 | |
| NM Type | NA | |||
| L Type | NA | |||
| Motor (3Ph) | IEC (Kw) | 60Hz | 2.2 | 3 |
| 50Hz | 1.5 | 2.2 | ||
| NEMA (Hp) | 60Hz | 3 | 5 | |
| Motor (1Ph) | IEC (Kw) | 50/60Hz | N/A | |
| Revolution | RPM | 60Hz | 1740 | |
| 50Hz | 1450 | |||
| Connections | G(BSP) or NPT | Inlet | 1-1/4" | |
| Outlet | 1-1/4" | |||
Performance Curve
