WONCHANG VACUUM
WONCHANG VACUUM

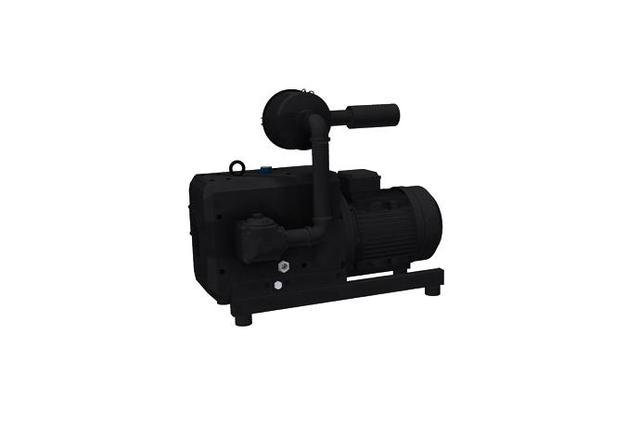

Description
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, Wire mesh Inlet Filter Screen, Vibration Isolator, TEFC High-Efficiency Motor, Anti-Suck Back Valve, Oil Level Sight Glass, Gas Ballast Valve, Spin-on Oil Filter.
Optional Equipment : Exhaust Pressure Gauge, Oil Level Switch (Port), Temperature Switch (Port), Heater Water Cooler, and Float Valve Assembly for oil return
Specifications
| Models | 800 | 1000 | 1200 | 1500 | ||
| Displace-ment | 60Hz | m3/h | 505 | 600 | 780 | NA |
| 50Hz | 420 | 500 | 660 | 750 | ||
| End-Vacuum | F or N Type | mbar | 0.1 | |||
| NM Type | NA | |||||
| L Type | 10 | |||||
| Motor (3Ph) | IEC (Kw) | 60Hz | 15 | 15 | 18.5 | NA |
| 50Hz | 11.25 | 11.25 | 15 | 18.5 | ||
| NEMA (Hp) | 60Hz | 15 | 20 | 25 | NA | |
| Motor (1Ph) | IEC (Kw) | 50/60Hz | N/A | |||
| Revolution | RPM | 60Hz | 1160 | NA | ||
| 50Hz | 980 | 1450 | ||||
| Connections | G(BSP) or NPT | Inlet | 3" | |||
| Outlet | 3" | |||||
Performance Curve
