WONCHANG VACUUM
WONCHANG VACUUM

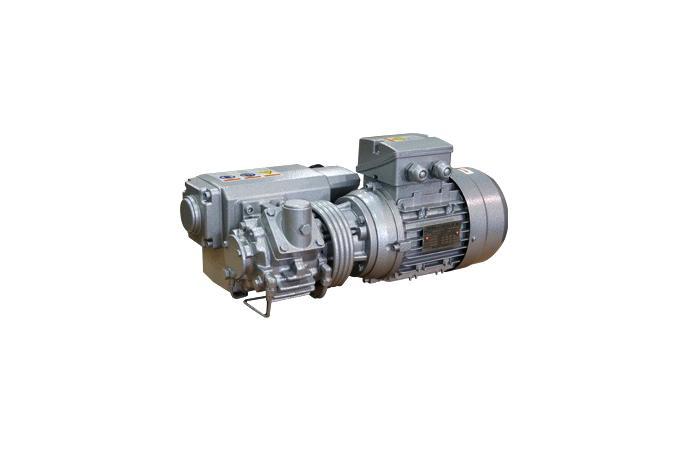

Description
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, wire mesh inlet filter screen, Vibration isolator, TEFC high-efficiency Motor, Antisuck back valve, Oil level sight Glass(1), Exhaust cover silence
Optional Equipment : Additional Oil level sight Glass, Exhaust Pressure Gauge, Exhaust Cover(threaded.)
Specifications
| Models | 20 | 30 | 40 | ||
| Displace-ment | 60Hz | m3/h | 12 | 18 | 24 |
| 50Hz | 10 | 15 | 20 | ||
| End-Vacuum | F or N Type | mbar | NA | ||
| NM Type | 2 | ||||
| L Type | 20 | ||||
| Motor (3Ph) | IEC (Kw) | 60Hz | 0.4 | 0.75 | 0.9 |
| 50Hz | 0.4 | 0.55 | 0.75 | ||
| NEMA (Hp) | 60Hz | N/A | |||
| Motor (1Ph) | IEC (Kw) | 50/60Hz | 0.4 | 0.75 | 0.9 |
| Revolution | RPM | 60Hz | 1740 | 3480 | |
| 50Hz | 1450 | 2870 | |||
| Connections | G(BSP) or NPT | Inlet | 1/2" | ||
| Outlet | 1-1/4" | ||||
Performance Curve
