WONCHANG VACUUM
WONCHANG VACUUM

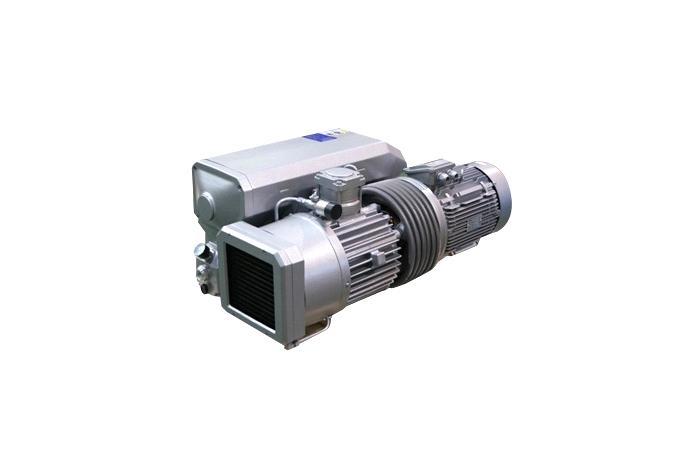

Description
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, wire mesh inlet filter screen, Vibration isolator, TEFC high-efficiency Motor, Anti-suck back valve, Oil level sight Glass, Gas Ballast Valve, Built-in Float Valve Assembly for oil return, Spin-on Oil filter.
Optional Equipment : Exhaust pressure Gause, Level Switch (Port), Temperature switch (Port), heater and water
Specifications
| Models | 350 | 500 | 600 | ||
| Displace-ment | 60Hz | m3/h | 210 | 300 | 360 |
| 50Hz | 175 | 250 | 300 | ||
| End-Vacuum | F or N Type | mbar | 0.5 | ||
| NM Type | NA | ||||
| L Type | NA | ||||
| Motor (3Ph) | IEC (Kw) | 60Hz | 5.5 | 7.5 | 8.6 |
| 50Hz | 5.5 | 5.5 | 7.5 | ||
| NEMA (Hp) | 60Hz | 7.5 | 10 | 11.5 | |
| Motor (1Ph) | IEC (Kw) | 50/60Hz | N/A | ||
| Revolution | RPM | 60Hz | 1740 | ||
| 50Hz | 1450 | ||||
| Connections | G(BSP) or NPT | Inlet | 2" | ||
| Outlet | 2" | ||||
Performance Curve
