This product is manufactured by
WONCHANG VACUUM

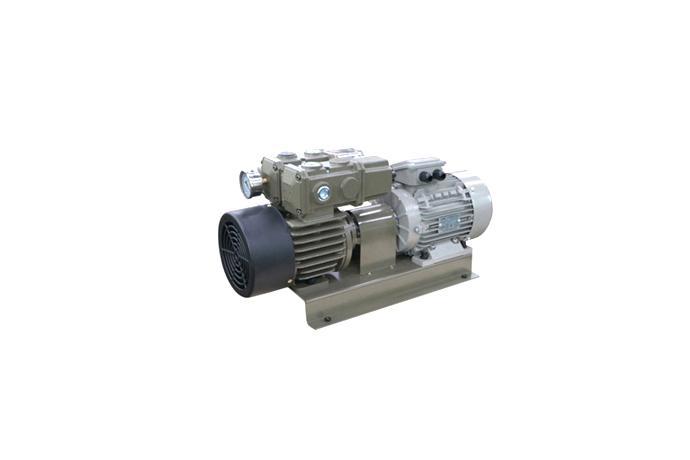

Dry Carbon Vane
Model Name
WVS-8
Data
카탈로그-원창진공-건식 카본 로터리 베인-WVS-8, WVS-8H, WVS-9, WVS-9H
Manufacturer information
WONCHANG VACUUM
Vacuum Pumps Manufacturer, Oil Sealed Rotary Vane, Dry Carbon Vane, Hook and Claw and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WONCHANG VACUUM
Product Type
Machine
Brand
-
SKU
136035
Product Name
Dry Carbon Vane
Model Name
WVS-8, WVS-8H, WVS-9, WVS-9H
Size
-
Weight
-
Product Details
Single Stage, Carbon Vane Rotary, Air-cooled
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple installation - Air-cooled, No Water Required - Oil-Free
ㆍQuite Operation
ㆍDirect Coupling Drive
Standard Equipment : Carbon Vanes, Built-in particulate filter & Silencer, Vibration isolators, Vacuum gage and Regulator, TEFC high-Efficiency Motor
Optional Equipment : Pressure Gauge & regulator for Blow operation
Specifications
| Models | WVH | |||
| 8 / 8H | 9 / 9H | |||
| Displacement | 60Hz | I/min | 1115 | 1350 |
| 50Hz | I/min | 935 | 1130 | |
| End-Vacuum | mm HgG | 650 | ||
| Normal Operating Vacuum | mm HgG | 450 / 600 | ||
| Normal Operating Pressure | Kgf/cm2 | 0.6 | ||
| Motor | Kw | 1.5(6P) | 2.2(6P) | |
|
Pump RPM |
60Hz | rpm | 1160 | |
| 50Hz | rpm | 980 | ||
| Connections | Intake (G-Bsp) | 1" | ||
| Driven | Coupling | |||
