WONCHANG VACUUM
WONCHANG VACUUM

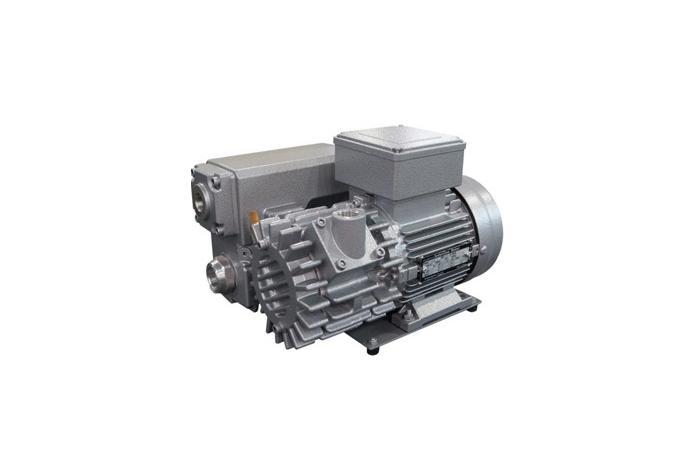

Description
Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free
ㆍQuiet operation
Standard Equipment : Composite Vane, wire mesh inlet filter screen, Vibration isolator, TEFC high-efficiency Motor, Anti-suck back valve, Oil level sight Glass(1), Exhaust Cover(threaded).
Optional Equipment : Additional Oil level sight Glass, Exhaust Filter Pressure Gauge.
Specifications
| Models | 10 | 12 | 20 | ||
| Displace-ment | 60Hz | m3/h | 8 | 10 | 16 |
| 50Hz | 10 | 12 | 19 | ||
| End-Vacuum | Float Type | 0.5 | 2 | 2 | |
| Motor (1&3Ph) | Kw | 50/60Hz | 0.3 | 0.3 | 0.6 |
| Revolution | RPM | 60Hz | 1800 | 3600 | 3600 |
| 50Hz | 1500 | 3000 | 3000 | ||
| Noise | dB(A) | 60Hz | 60 | 63 | 64 |
| 50Hz | 57 | 59 | 60 | ||
| Operating Temp | ℃ | 77 | 80 | 85 | |
| Oil Capacity | Ltr | 0.3 | 0.3 | 0.3 | |
| Connections | G(BSP) or NPT | Intake | 1/2" | 1/2" | 1/2" |
| Exhaust | 1/2" | 1/2" | 1/2" | ||
| Weight | Kg (with motor) | 16 | 16 | 18 | |
Performance Curve
