WONCHANG VACUUM
WONCHANG VACUUM
Description

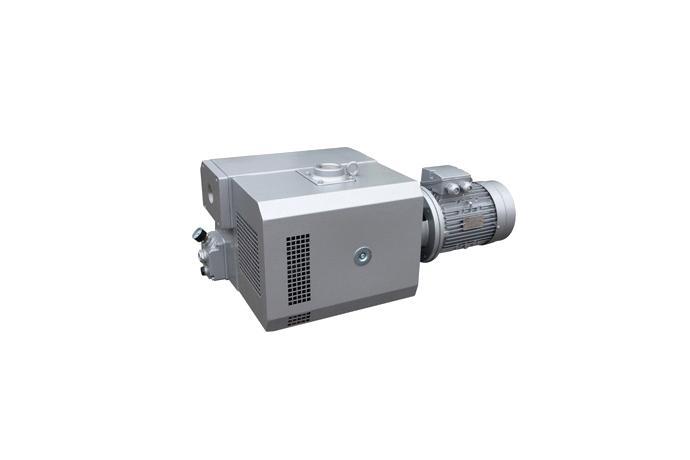

Single Stage, Oil Re-circulating, Air Cooled, and direct driven
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate.
ㆍSimple Installation - Air-cooled no water required.
ㆍDirect Drive - C-face design requires no belts
ㆍIntegral Exhaust filter - Discharge Air 99.9% Oil-Free Quiet operation
Standard Equipment : Composite Vane, wire mesh inlet filter screen, Vibration isolator, TEFC high-efficiency Motor, Anti-suck back valve, Oil level sight Glass, Gas Ballast Valve (N&F Only), Spin-on Oil Filter
Optional Equipment : Exhaust pressure Gause, Level Switch, and Heater
Specifications
| Models | 320 | 430 | ||
| Displace-ment | 60Hz | m3/h | 192 | 258 |
| 50Hz | 160 | 215 | ||
| End-Vacuum | F or N Type | mbar | 0.5 | |
| NM Type | NA | |||
| L Type | NA | |||
| Motor (3Ph) | IEC (Kw) | 60Hz | 3.7 | 5.5 |
| 50Hz | 3.7 | 5.5 | ||
| NEMA (Hp) | 60Hz | 5 | 7.5 | |
| Motor (1Ph) | IEC (Kw) | 50/60Hz | N/A | |
| Revolution | RPM | 60Hz | 1740 | |
| 50Hz | 1450 | |||
| Connections | G(BSP) or NPT | Inlet | 2" | |
| Outlet | 1-1/2" | |||
Performance Curve
