This product is manufactured by
WONCHANG VACUUM

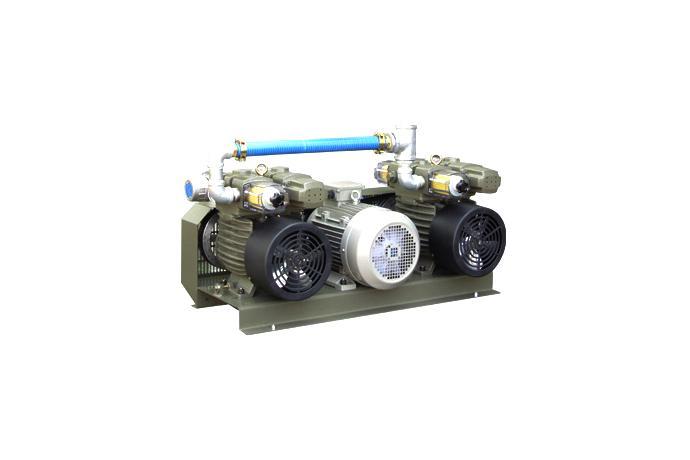

Dry Carbon Vane
Model Name
WBS-80B
Data
카탈로그-원창진공-건식 카본 로터리 베인-WBS-80B, WBS-85B, WBS-90B, WBS-95B, WBS-100B
Manufacturer information
WONCHANG VACUUM
Vacuum Pumps Manufacturer, Oil Sealed Rotary Vane, Dry Carbon Vane, Hook and Claw and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WONCHANG VACUUM
Product Type
Machine
Brand
-
SKU
136038
Product Name
Dry Carbon Vane
Model Name
WBS-80B, WBS-85B, WBS-90B, WBS-95B, WBS-100B
Size
-
Weight
-
Product Details
Single Stage, Carbon Vane Rotary, Air-cooled
ㆍCompact Design - Reliability & Durability - Easy to maintain and operate
ㆍSimple Installation - Air Colled, No water require - Oil free
ㆍQuite Operation
ㆍTiming Belt Drive Ideal for Vacuum and blow operation
Standard Equipment : Carbon Vanes, Built-in particular filter&silencer, Vibration isolators, Vacuum gage and Regulator, TEFC High Efficiency Motor
Optional Equipment : Pressure Gauge & Regulator for Blow Operation
Specifications
| Models | 30A | 50A | 60A | 80A | 100B | ||
| Displacement | 60Hz | I/min | 1115x2 | 1350+ 1115 | 1350x2 | 1350+ 2200 | 2200x2 |
| 50Hz | I/min | ||||||
| End-Vacuum | mm HgG | 650 | |||||
| Normal Operation Vacuum | mm HgG | 450 | 410 | ||||
| Normal Operating Pressure | Kgf/cm2 | 0.6 | |||||
| Motor | Kw | 4 | 5.5 | 7.5 | |||
| Pump RPM | 60Hz | rpm | 1160 | 1160+ 1100 | 1100 | ||
| 50Hz | rpm | ||||||
| Connections | Intake (G-Bsp) | 1" | 1", 1-1/4" | 1-1/4" | |||
| Driven | V-Belt | ||||||
Performance Curve
