Shilla Fire
Shilla Fire
Description

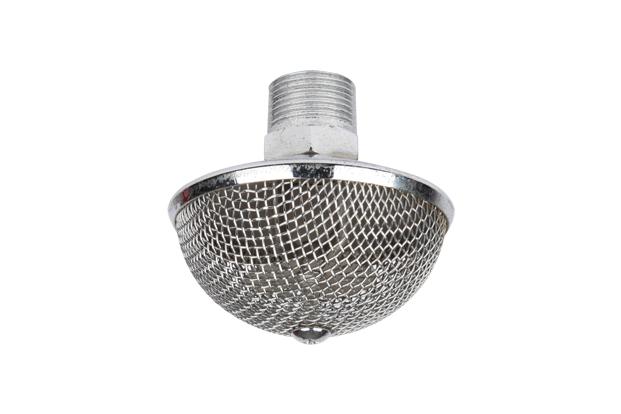

FOAM HEAD (Pendent Type)
This is a low foaming head for firefighting that smothers and cools with foam mixed with air when the foam is released from the foaming facility.
USE : Underground parking lot, aircraft hangar, hazardous material warehouse, oil storage tanks, etc.
| Model | Size (NPT, PT) |
Flow Rate (@ 0.3MPa) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Weight (kg) |
Installation Height |
Remarks |
|---|---|---|---|---|---|---|---|---|---|
| SL-FH-15 | 1/2” | 35 LPM | 65 | 58 | 29 | HEX.24 | 0.1 | 2~5 Meter, Pendent |
Brass + Stainless Steel, |
| SL-FHA-15 | 1/2” | 68 LPM | 72 | 82 | 24 | HEX.24 | 0.15 | ||
| SL-FHA-20 | 3/4” | 80 LPM | 77 | 82 | 29 | HEX.27 | 0.2 |
