Description
RING VALVE (SLB-R40 / SLB-R65, Fire Hose Extension Valve) PATENED
The ring vlave for fire hose is very convenient for quick application when hose extension is required after initial long-dis- tance water supply by immediate closing and connecting the hose additionally to open the valve. The fire hose extended in length can prevent malfunction of the valve when going up the alley or building stairs and having the handle stuck on the obstacles of corners. Also, the high water pressure supplied from the fire truck can be reduced between the hoses to prevent risks from the high water pressure. This valve for hose extension is safe and convenient.
 |
 |
|
SLB-R40 Size : FE40,FE65(FXM) Material : Aluminium Working Pressure : 2MPa Working Pressure : For hose extension, Open/Close Working Pressure : No protruding lever and lightweight. |

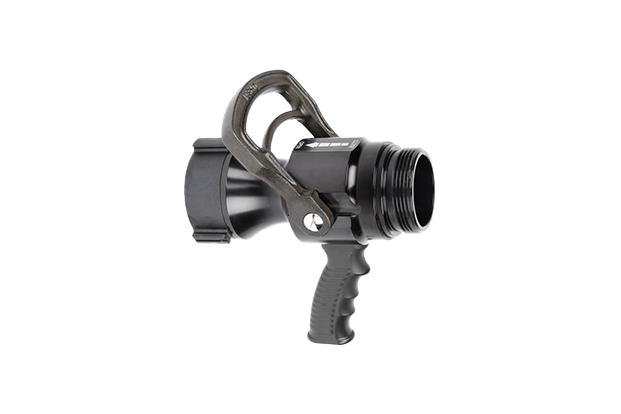

BALL VALVE for Lightweight Hose (For Hose & Nozzle)
The ball valve is connected between the fire hose and nozzle. When hose extension is required, the valve can be closed for hose extension, and the nozzle Open/Close can be enabled quickly. The ball valve is a lightweight and convenient valve that can respond quickly to changes in the fire site.
| Model | Size | Material | Test Pressure |
Remarks |
|---|---|---|---|---|
| SLB-40P | NH1-1/2” (F) x NH1-1/2” (M) | AL | 2MPa | For nozzle, pistol-type rigid black color |
| SLB-65P | NH2-1/2” (F) x NH2-1/2” (M) | |||
| SLB-40S | NH1-1/2” (F) x NH1-1/2” (M) | For nozzle and hose connection For hose extension, KFI certified |
||
| SLB-40 | NH1-1/2” (F) x NH1-1/2” (M) | |||
| SLB-65 | NH2-1/2” (F) x NH2-1/2” (M) |
