BRANCH PIPE
Branch Pipes are used on monitors. With it’s maximized reach and excelent straight stream pattern, it saves much of fire water. Performs 30% more flow distance than fog & straight stream nozzle.
SL-8SS : Separate type with various size of tips.
SL-8SF-B : Integral type with fixed flow rate
SL-8SFG-B : Integral type with fixed flow rate (for mass production)
| Model | Size | Outle Size |
Flow Rate (@0.7MPa) |
Shooting L(m) | L (mm) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-8SS | FE65 (2-1/2”) | FB65 | 200~2500 LPM |
50M (Tip Ø23) |
355 | Aluminium | Black Hard Anodized Ni-Cr. Plated |
| SL-8SF-B | FE65 (2-1/2”) | 11~38 mm |
200~2500 LPM |
48M(Tip Ø23) |
250 | Bronze | Ni-Cr. Plated |
| SL-8SFG-B | FE75(3”) | 40~55 mm |
2500~5000 LPM |
85M (Tip Ø42) |
700 | SUS& Bronze |
Electropolishing. Ni-Cr. Plated |
| Tip Size & Flow (0.7MPa) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Ø11 | Ø14 | Ø17 | Ø20 | Ø23 | Ø26 | Ø29 | Ø32 | Ø38 | Ø48 | Ø50 | Ø55 |
| Flow | 200 | 330 | 490 | 690 | 900 | 1130 | 1400 | 1770 | 2490 | 4000 | 4500 | 5000 |

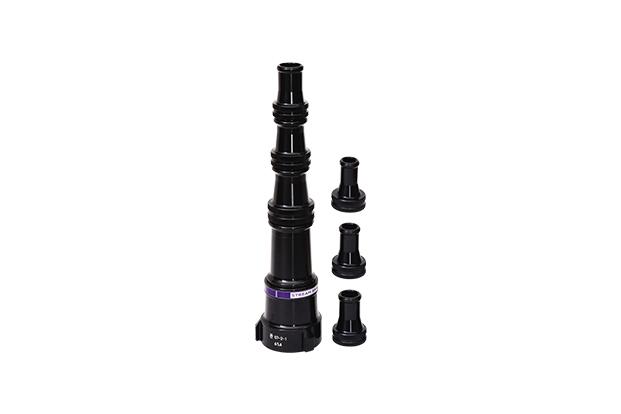

STACKED NOZZLE
Designed for monitor use for long distance.
7 different sizes of tips in one set varies flow rate from 690 LPM to 4000 LPM.
ㆍMODEL : SL-8SF
ㆍTYPE : STRAIGHT STREAM TYPE
ㆍCONNECTION : INLET – FE65 FEMALE THREAD
ㆍPRESSURE : WORKING – 1.25 MPa
TEST – MAX. 1.5 MPa
ㆍFLOW RANGE : 450 ~ 4000 LPM @ 0.3~0.7 MPa
ㆍSHOOTING RANGE : MAX. 65METER(STRAIGHT) @ 0.7 MPa
ㆍMATERIAL : BODY – AL. ALLOY / VANE – MC NYLON (PLASTIC)
ㆍSURFACE : HARD ANODIZED COAT.(BLACK)
ㆍLENGTH : 430 mm
ㆍWEIGHT : Approx. 1.50 kg
| 20mm | 24mm | 26mm | 29mm | 32mm | 38mm | 48mm | |
|---|---|---|---|---|---|---|---|
| 0.7MPa | 690LPM | 900LPM | 1130LPM | 1400LPM | 1770LPM | 2490LPM | 4000LPM |

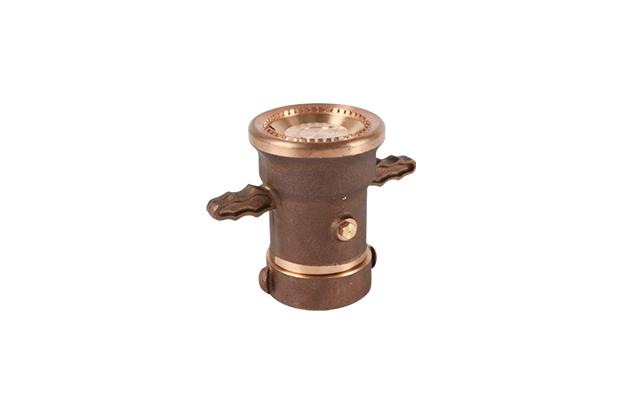

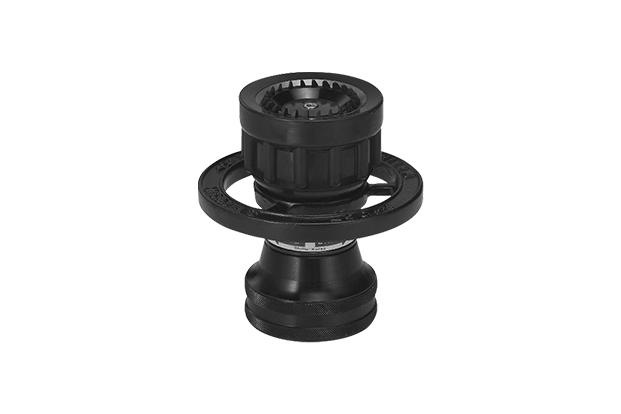

WATER MONITOR NOZZLE (BRONZE)
Designed and engineered for industrial applications and heavy duty use on fixed or portable monitors.
Wide flows from 300 to 1000GPM and combination fog, straight stream and shut-off itself.
Maximized reach and excellent straight stream pattern save much of fire water. Fixed gallonage for stable flow and corrosion resistance bronze component. Particularly, SL-16JN series can accommodate a stable stream for both straight and fog.
| Model | Size | Flow Rate (@0.7MPa) |
Shooting L(m) (@0.7MPa) |
L (mm) | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-16JN-500 | FE65 (2-1/2”) | 500 GPM | 60 | 154 | 4.9 | Bronze | |
| SL-16JN-750 | 750 GPM | 67 | 180 | 6.6 | |||
| SL-16JN-1000 | 1000 GPM | 72 | 180 | 6.6 | |||
| SL-16CJ | 350/500 GPM | 46/52 | 190 | 4.7 | KFI SHUT-OFF |
||
| SL-16J | 750 GPM | 67 | 200 | 5.0 | |||
| SL-16NR | 500 GPM | 60 | 154 | 7.3 | for TOWER MONITOR |
WATER MONITOR NOZZLE (ALUMINIUM)
Designed and engineered for industrial applications and used on fixed or portable monitors.
Wide flows from 300 to 1250gpm and combination fog, straight stream.Maximized reach and excellent straight stream pattern saves much of fire water.
Fixed gallonage for stable flow.
Lightweight aluminium with black hard anodized is free from corrosion.
Round handle for easy control of fog & straight stream.
| Model | Size | Flow Rate (@0.7MPa) |
Shooting L(m) | L (mm) | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-16SN | FE65 (2-1/2”) | 300 GPM | 40 | 170 | 1.8 | Aluminum | Black Hard Anodized |
| SL-16NW | FE65 (2-1/2”) | 300/500 GPM | 54/56 | 178 | 2.5 | ||
| SL-16JNW-2 | FE65 (2-1/2”) | 750/1000 GPM | 68/76 | 230 | 3.4 | ||
| SL-16JNW-3 | FE75 (3”) | 750/1000 GPM | 68/76 | 235 | 3.5 | ||
| SL-16MSW-3 | FE75 (3”) | 1000/1250 GPM | 100 | 230 | 5.6 |

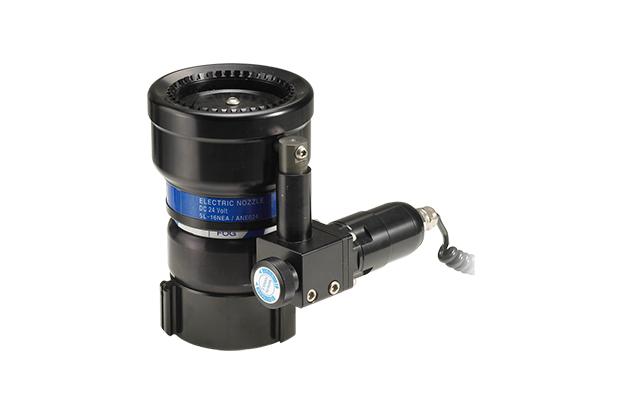

WATER MONITOR NOZZLE (ELECTRIC)
Electric nozzles are designed to use on hard to reach fire area as industrial complexes, refineries, petrochemical plants, offshore platforms. Fog and straight stream pattern can be controlled remotely.
Available weather proof, ex-proof or dust ex-proof as optional.
| Model | Size | Flow Rate (@0.7MPa) |
Shooting L(m) |
L (mm) | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-16SNEA | FE40/65/BSP2″ | 130/150/240 GPM | 54 | 207 | 2.5 | Aluminum | Black Hard Anodized |
| SL-16NEA | FE65 (2-1/2”) | 350/500 GPM | 54/56 | 178 | 3.15 | ||
| SL-16JNEA | FE65 (2-1/2”) | 750/1000 GPM | 68/76 | 230 | 4.25 | ||
| SL-16MSE-3 | FE75 (3”) | 1250 GPM (4730LPM) |
100 | 230 | 6.4 | ||
| SL-8SFE | FE65 (2-1/2”) | 180 ~660 LPM | Max. 65 | 520 | 3.9 | ||
| SL-16NE | FE65 (2-1/2”) | 350/500 GPM | 54/56 | 160 | 6.8 | Bronze | Ni-Cr. Plated |
| SL-16JNE | FE65 (2-1/2”) | 750/1000 GPM | 68/76 | 180 | 8.5 |
1. Special Feature
ㆍDesigned for industrial applications or fire trucks and used on fixed or portable monitors
ㆍLarge flow for far reach flow distance
ㆍInlet screen to filter foreign material
ㆍLightweight aluminium with black hard anodized for corrosion resistance
ㆍApplied UV resistant handle for both weatherability and shock
ㆍHigh quality rubber bumper prevents nozzle from impact.
ㆍExd IIC T5 grade electric actuator for electric nozzle. Manual override
2. PERFORMANCE FLOW CHART
3. EFFECTIVE REACH CHART
– Straight stream pattern. 30 deg. from the ground.
– Effective range varies by pressure and wind speed.
