Description

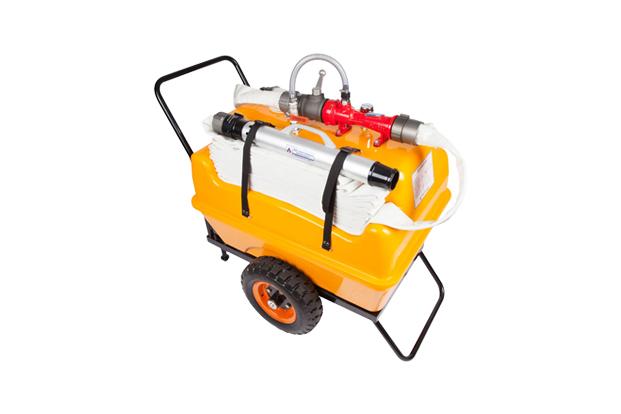

MOBILE FOAM UNIT
It is a movable (vehicle pulled) foam extinguishing equipment designed and manufactured according to the Fire Services Act, suitable for handling dangerous substances such as gas station. The product is largely composed of a trailer, a foam tank, a monitor and a nozzle. Depending on the storage capacity, 4 standard types of 120 liter, 200 liter, 250 liter and 400 liter and large-capacity foam trailer up to 2000 liter are produced. Products of other size can be manufactures upon request.
SL-2100 (120Liter) / SL-2100B (200Liter) / SL-2100F (250Liter)
| Component | Model | Quantity | Material |
|---|---|---|---|
| TRAILER FRAME | 1EA | Carbon Steel | |
| FOAM TANK | 120 / 200 / 250 liter | 1EA | FRP |
| EDUCTOR | SL-28S / SL-28B | 1EA | Bronze |
| FOAM NOZZLE | SL-17S / SL-19MS | 1EA | Aluminium |
| FIRE HOSE | SL-HD40 / SL-HD65 | 2 Rolls | Aluminium/ Polyester |
| BALL VALVE | SLB-40 / SLB-65 | 1EA | Aluminium |
| AIR VENT | SL-90AV | 1EA | Brass |
| HOSE WRENCH | SL-63AN | 2EA | Aluminium |
SL-31-3FT (400Liter)
It is movable fire-fighting equipment that can be quickly moved near the fire scene in case of fire. It is easy to use as a foam nozzle such as 250 GPM or 500 GPM is attached to the gear-type monitor.
| Component | Model | Quantity | Material |
|---|---|---|---|
| TRAILER FRAME | Size : 3060 x 1600 x 1605 | 1EA | Carbon Steel |
| FOAM TANK | 400 liter | 1EA | Stainless Steel |
| MONITOR | SL-26N-4 or SL-27A | 1EA | Aluminium or Bronze |
| FOAM NOZZLE | SL-19GM | 1EA | Aluminium |
| FIRE HOSE | SL-HD-65 | 4 Rolls | Aluminium / Polyester |
| BALL VALVE | SL-48MB-4 | 1EA | Cast Iron or Bronze |
| HOSE WRENCH | SL-63AN | 2EA | Aluminium |
APPLICATION
 |
 |
 |
 |
SL-31-3FTA (2000 Liter)
It is a foam trailer that stores large amount of foam liquid enough to discharge foam for 30 minutes with 500 GPM of a foam nozzle and for 15 minutes with 1000 GPM of a foam nozzle. It is also possible to use low-capacity foam nozzle by connecting a hose to an eductor installed at the rear for extinguishing fire within short distance.
| Component | Model | Quantity | Material |
|---|---|---|---|
| TRAILER FRAME | Size : 3650 x 1600 x 1800 | 1EA | Carbon Steel |
| FOAM TANK | 2000 liter | 1EA | Stainless Steel |
| MONITOR | SL-26N-4 or SL-27A | 1EA | Aluminium or Bronze |
| FOAM NOZZLE | SL-19GM / SL-15FN | 1EA | Aluminium |
| FIRE HOSE | SL-HD-65 | 4 Rolls | Aluminium / Polyester |
| BALL VALVE | SL-48MB-4 | 1EA | Cast Iron or Bronze |
| HOSE WRENCH | SL-63AN | 2EA | Aluminium |
| EDUCTOR (Option) | SL-28B | 1EA | BRONZE |
| BALL VALVE (Option) | SLB-65B | 1EA | Aluminium |
APPLICATION
 |
 |
 |
 |
PRO/pak(MULTI PURPOSE FOAM APPLICATION SYSTEM)
PRO/pak is a portable foam extinguishing equipment possible for use in Grade A or B fire, and can be used for various purposes.
The required parts can be arranged behind the foam container to be assembled quickly on need for use.
* On oil spill / Lifesaving in car accidents / Small fire / Fire prevention / Forest fire extinguishing / On car fire
 |
Capacity : 9.6Liters Size : 345 x 275 x 430mm(L x W x H) Weighty : 5.2kg / 13.6kg (Empty / Full) Operating Pressure : 40 / 3 bar (Max/Min) Remark : Low-expansion(1:6), Medium-expansion(1:60) |
FOAM HYDRANT BOX
It is a cabinet-type foam facility that is installed and used in parking lots, boiler rooms, oil storage warehouses and etc. It has built-in type foam liquid storage tank. It mixes and discharges water and foam liquid inhaled from an eductor using a foam nozzle. Equipment for 200 liter and for 360 liter is available.
Size : 200Liter Tank – 1000(W) x 570(D) x 1370(H) x 200(L)
360Liter Tank – 1250(W) x 620(D) x 1370(H) x 200(L)
Material : CABINET – Carbon Steel or Stainless Steel
Tank – Stainless Steel
Painting : Cabinet – Itself, Tank – Yellow
Type : Floor-fixed type
Content : FOAM EDUCTOR(2-1/2”) 1EA, FIRE HOSE(2-1/2”*15M) 2EA, FOAM NOZZLE(2-1/2”) 1EA, HOSE WRENCH, AIR VENT
