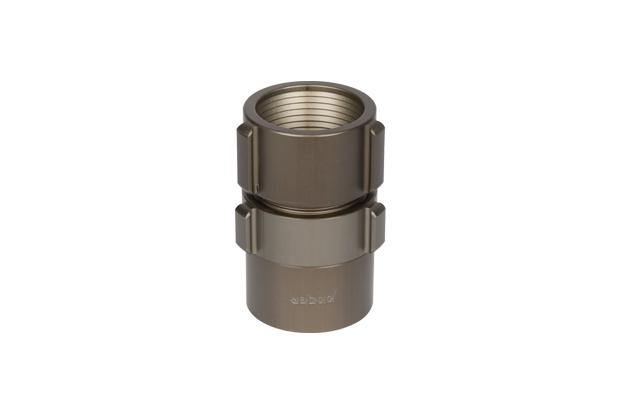

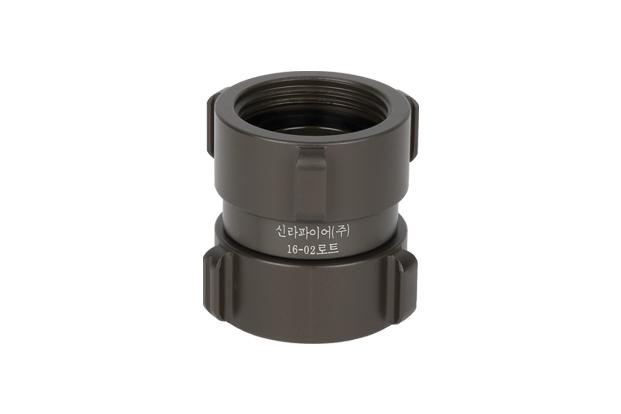

Double-Female Coupling (NH Standard)
As the connector of the fire hose or nozzle for hydrant or fire truck,Double female couplings have NH female thread at both side. Male NH thread can be connected each side and swivel type is mostly used.
|
SL-49-A |
SL-49-A |
SL-49-A |
| Model | Size (Female X Female) |
Material |
|---|---|---|
| SL-49-A | NH1-1/2” | Aluminum Option-Bronze |
| SL-49-A-A | NH2-1/2” | |
| SL-49B-A | NH3” | |
| SL-49F-A | NH4” | |
| SL-49K-A | NH4-1/2” | |
| SL-49H-A | NH5” | |
| SL-49L-A | NH6” | |
| SL-49C-A | NH2-1/2” x NH1-1/2” | |
| SL-49D-A | NH3” x NH2-1/2” | |
| SL-49G-A | NH4” x NH2-1/2” | |
| SL-49E-A | NH4” x NH3” | |
| SL-49B-A | NH4-1/2” x NH4” | |
| SL-49I-A | NH5” x NH4” | |
| SL-49J-A | NH5” x NH4-1/2” |
Double-Male Coupling (NH Standard)
As the connector of the hose or nozzle for hydrant or fire truck, Double male couplings have NH male thread at both sides. Female NH thread can be connected each side.
|
SL-51A-A |
SL-51B-A |
SL-51D |
| Model | Size (Female X Female) |
Material |
|---|---|---|
| SL-51-A | NH1-1/2” | Aluminum Option-Bronze |
| SL-51A-A | NH2-1/2” | |
| SL-51C-A | NH3” | |
| SL-51D-A | NH4” | |
| SL-51F-A | NH4-1/2” | |
| SL-51E-A | NH5” | |
| SL-51G-A | NH6” | |
| SL-51B-A | NH2-1/2” x NH1-1/2” | |
| SL-51J-A | NH3” x NH2-1/2” | |
| SL-51S-A | NH4-1/2” x NH4” | |
| SL-51K-A | NH5” x NH4” | |
| SL-51H-A | NH6” x NH4-1/2” |

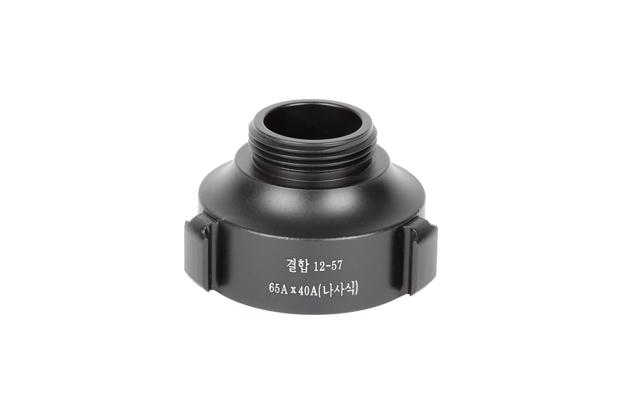

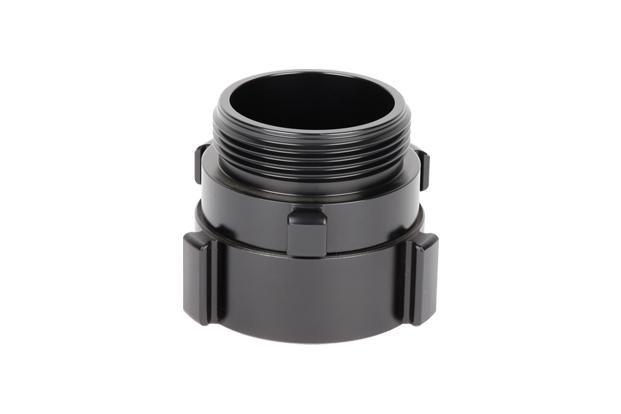

Female-to-Male Coupling (NH Thread)
The coupling is used when the connector specification is different or when requiring extension in length.
One side is female thread and other with male thread. Each can be connected to the male and female thread.
|
SL-50ES |
SL-50C-A |
SL-50B |
SL-50D |
| Model | Size (Female X Female) |
Material |
|---|---|---|
| SL-50 | NH1-1/2” x FE25 | Aluminum Option-Bronze |
| SL-50ES | NH2-1/2” x NH1-1/2” | |
| SL-50EA (Long) |
NH2-1/2” x NH1-1/2” | |
| SL-50M-A | NH2-1/2” x NH3” | |
| SL-50BA | NH3” x NH2-1/2” | |
| SL-50C-AA | NH4” x NH2-1/2” | |
| NH4” x NH3” | ||
| SL-50D-AA | NH4-1/2” x NH2-1/2” | |
| SL-50D-A | NH4-1/2” x NH4” | |
| SL-50H-A | NH5” x NH2-1/2” | |
| SL-50I-A | NH5” x NH4” |
Female-to-Male Coupling (NH Thread, Swivel)
The coupling is used when the connector specification is different or when requiring extension in length, and one side is female thread and other with male thread. Each can be connected to the male and female thread.
|
SL-54A-A |
SL-50FA |
| Model | Size (Female X Female) |
Material |
|---|---|---|
| SL-54-A | NH1-1/2” x NH1-1/2” | Aluminum Option-Bronze |
| SL-50FA | NH1-1/2” x NH2-1/2” | |
| SL-54A-A | NH2-1/2” x NH2-1/2” | |
| SL-50F-A | NH2-1/2” x NH4-1/2” | |
| SL-50K | NH2-1/2” x NH5” | |
| SL-54BA-A | NH3” x NH3” | |
| SL-54C-AA | NH4” x NH4” | |
| SL-50C-BA | NH4” x NH5” | |
| SL-50J | NH4-1/2” x NH5” | |
| SL-50G | NH4-1/2” x NH6” | |
| SL-54E-A | NH5” x NH6” | |
| SL-54D-A | NH6” x NH5” |
Hose Coupling (NH Thread)
Hose coupling is to connect fire hose or suction hose. Both for single jacket and double jacket fire hose are available.
For the material of the coupling, lightweight aluminum is mostly used, but bronze material is also used for places requiring corrosion-resistance.
|
SL-58D-A |
SL-58D-A |
| Model | Size | Material | Remark |
|---|---|---|---|
| SL-58S-A | NH1-1/2” | Al. Option- Bronze |
Single Jacket |
| SL-58SA-A | NH2-1/2” | Single Jacket | |
| SL-58D-A | NH3” | Double Jacket | |
| SL-58DA-A | NH4” | Double Jacket | |
| SL-208A-A | NH4-1/2” | For Suction Hose | |
| SL-208B-A | NH5” | For Suction Hose | |
| SL-208C-A | NH6” | For Suction Hose |

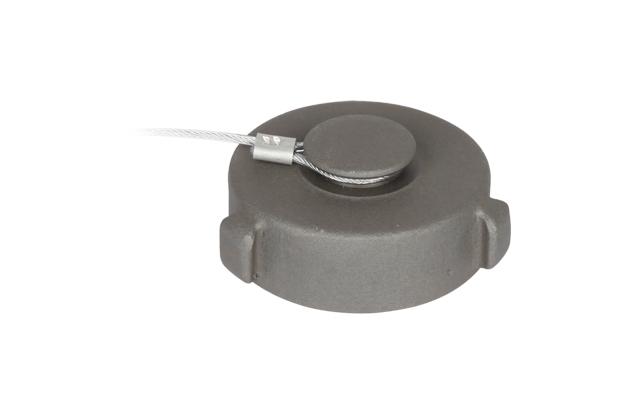

CAP & PLUG (NH Thread)
The connector is used to prevent leakage or thread damage on the firefighting facility. For the connector material, aluminum is mostly used, but bronze material is also used in places requiring corrosion-resistance.
|
SL-55A |
SL-55B |
SL-56 |
|
SL-55F |
SL-55D-H |
| Classification | Model | Size |
|---|---|---|
| CAP | SL-55 | NH1-1/2”(F) |
| SL-55A | NH2-1/2”(F) | |
| SL-55B | NH3”(F) | |
| SL-55C | NH4”(F) | |
| SL-55D | NH4-1/2”(F) | |
| SL-55E | NH5”(F) | |
| SL-55F | NH6”(F) | |
| PLUG | SL-56 | NH1-1/2”(M) |
| SL-56A | NH2-1/2”(M) | |
| SL-56B | NH3”(M) | |
| SL-56C | NH4”(M) |
