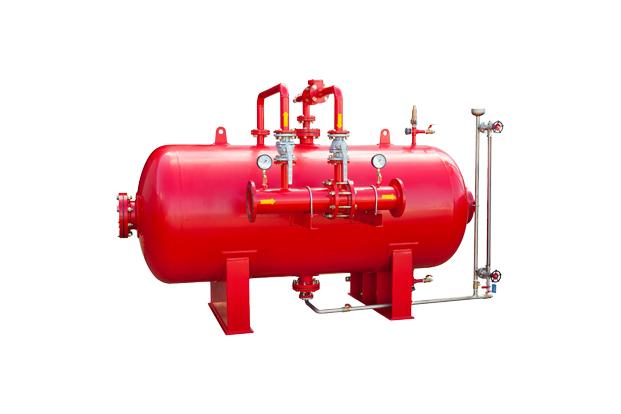

FOAM TANK (BLADDER TYPE)
It is a tank for storing foam liquid installed with a pressure proportioner or a diaphragm pressure proportioned.
A bladder bag is installed inside the tank, so foam liquid is stored inside the bag.
The stored foam liquid is pushed by the pressure in the water supply line to be discharged and mixed with fire water.
A tank is made of carbon steel. The inner wall is not in contact with the foam liquid but is in contact with water, so it is coated with anti-corrosion coating to prevent corrosion. The built-in bladder bag is made of a material that is not hardened or aged by the foam liquid and is not damaged by pressure, so that the lifetime is longer and more stable.
| Model | Capacity (Gallon) |
Dimension (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||
| SL-HT-100 | 100 | 1,816 | 1,036 | 590 | 200 ~ 1,500 |
611 | 820 | 340 |
| SL-HT-200 | 200 | 2,227 | 1,189 | 790 | 714 | 1,024 | 475 | |
| SL-HT-300 | 300 | 2,260 | 1,350 | 915 | 777 | 1,024 | 630 | |
| SL-HT-400 | 400 | 2,380 | 1,497 | 1,045 | 845 | 1,024 | 800 | |
| SL-HT-500 | 500 | 2,796 | 1,497 | 1,045 | 845 | 1,300 | 800 | |
| SL-HT-600 | 600 | 2,962 | 1,497 | 1,045 | 845 | 1,640 | 800 | |
| SL-HT-700 | 700 | 3,086 | 1,644 | 1,900 | 917 | 1,350 | 850 | |
| SL-HT-800 | 800 | 3,336 | 1,644 | 1,900 | 917 | 1,640 | 850 | |
| SL-HT-900 | 900 | 3,740 | 1,644 | 1,900 | 917 | 1,640 | 850 | |
| SL-HT-1000 | 1000 | 4,040 | 1,644 | 1,900 | 917 | 1,700 | 850 | |
| SL-HT-1100 | 1100 | 3,126 | 1,950 | 1,495 | 1,072 | 1,400 | 1,100 | |
| SL-HT-1200 | 1200 | 3,366 | 1,950 | 1,495 | 1,072 | 1,570 | 1,100 | |
| SL-HT-3700 | 3,700 | 14,000 | 2,391 | 1,956 | 1,298 | 2,000 | 1,400 | |
* Only for reference. It can be different depending on quality improvemet and customer’s specifications.
| Model | Capacity (Gallon) |
Dimension (mm) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| SL-VT-100 | 100 | 2,001 | 1,727 | 590 | 200 ~ 1,500 |
605 |
| SL-VT-200 | 200 | 2,331 | 2,081 | 790 | 760 | |
| SL-VT-300 | 300 | 2,568 | 2,244 | 915 | 880 | |
| SL-VT-400 | 400 | 2,531 | 2,202 | 1,045 | 1,020 | |
| SL-VT-500 | 500 | 3,137 | 2,796 | 1,045 | 1,310 | |
| SL-VT-600 | 600 | 2,930 | 2,603 | 1,190 | 1,150 | |
| SL-VT-700 | 700 | 3,400 | 3,073 | 1,190 | 1,150 | |
| SL-VT-800 | 800 | 2,722 | 2,322 | 1,495 | 1,476 | |
| SL-VT-1000 | 3,785 | 3,172 | 2,505 | 1,495 | ||
* Only for reference. It can be different depending on quality improvemet and customer’s specifications.
NON-BLADDER TANK
It is a tank for storing foam liquid applied to a mixer that has a self-inhaling function such as a pressure side proportioned and a line proportioner or a pump proportioned.
As the foam liquid comes into direct contact with the tank surface, it is mainly made of stainless steel to prevent corrosion by the foam liquid. In order to prevent the evaporation or deterioration of the foam liquid at the normal time and to smoothly inhale the air, the air vent suitable for the maximum discharging amount is installed.
| Capacity (Gallon) |
Dimension (mm) | ||
|---|---|---|---|
| A | B | C | |
| 600 | 3,100 | 770 | 960 |
| 800 | 3,150 | 880 | 1,070 |
| 1,000 | 3,450 | 920 | 1,110 |
| 2,000 | 3,550 | 1,260 | 1,500 |
| 3,000 | 3,700 | 1,520 | 1,770 |
| 4,000 | 3,750 | 1,720 | 1,970 |
| 5,000 | 3,800 | 1,910 | 2,160 |
| 6,000 | 4,200 | 1,910 | 2,160 |
| 8,000 | 4,600 | 2,080 | 2,340 |
| 10,000 | 4,850 | 2,200 | 2,440 |
| 12,000 | 4,950 | 2,370 | 2,770 |
| 14,000 | 5,000 | 2,550 | 2,950 |
| 16,000 | 5,200 | 2,630 | 3,030 |
| 18,000 | 5,500 | 2,680 | 3,080 |
* Only for reference. It can be different depending on quality improvemet and customer’s specifications.
