Description

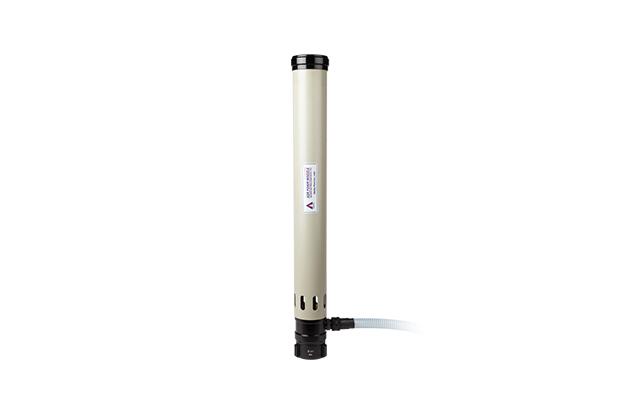

FOAM AERATION NOZZLE (STRAIGHT STREAM)
These series of foam aeration nozzles are low expansion providing better reach with the straight stream pattern. Mainly used at oil storage tanks, liquid gas storage, aircraft hangar or petrochemical plants. Standard foam ratio 3% but available 1 – 6% with metering valve.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) | W (kg) | Remarks |
|---|---|---|---|---|---|
| SL-17S | FE40 (1-1/2”) | 330 LPM | 590 | 1.2 | No Pick-up Type |
| SL-17 | 305 LPM | 598 | 1.2 | Pick-up Type | |
| SL-17PS | 630 | 2.5 | Shut-off Valve | ||
| SL-19MS | FE65 (2-1/2”) | 560 LPM | 700 | 2.6 | No Pick-up Type |
| SL-19MP | 700 | 2.5 | Pick-up Type | ||
| SL-19MB | 815 | 4.3 | Shut-off Valve | ||
| SL-19MS-B | 760 | 3.4 | No Pick-up/Shoulder Strap | ||
| SL-19MP-B | 760 | 3.3 | No Pick-up/Shoulder Strap | ||
| SL-17SQ | Machino 40 (1-1/2”) | 305 LPM | 597 | 1.1 | No Pick-up Type |
| SL-17Q | 605 | 1.3 | Pick-up Type | ||
| SL-17PSQ | 637 | 2.5 | Shut-off Valve | ||
| SL-19MSQ | Machino 65 (2-1/2”) | 560 LPM | 720 | 2.8 | No Pick-up Type |
| SL-19MPQ | 720 | 2.8 | Pick-up Type | ||
| SL-19MBQ | 820 | 4.6 | Shut-off Valve | ||
| SL-19MSQ-B | 770 | 3.5 | No Pick-up / Shoulder Strap | ||
| SL-19MQ-B | 770 | 3.6 | Pick-up Type / Shoulder Strap |

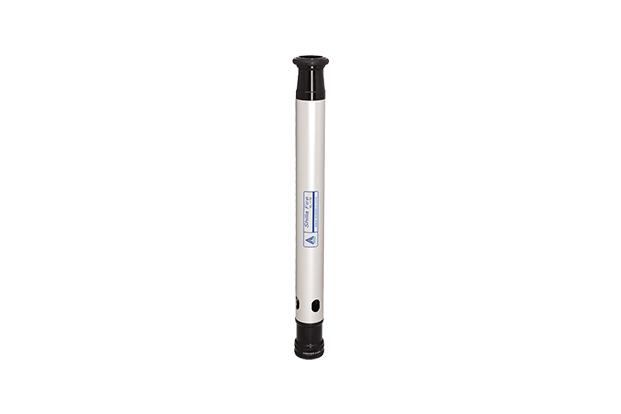

FOAM AERATION NOZZLE (FOG & STRAIGHT STREAM / STRAIGHT STREAM)
Large flow low expansion foam nozzle mounted on monitor.
Used at oil storage tanks, oil refineries, jetties etc where greater application rates are necessary.
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) | Shooting L(m) (@0.7MPa) |
W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-19M | FE65 (2-1/2”) | 250 GPM | 866 | 45 | 3.0 | Aluminum | Straight |
| SL-19GM | FE65 (2-1/2”) | 350/500 GPM | 900 | 48/50 | 3.9 | ||
| SL-19GMA | FE65 (2-1/2”) | 750/1000 GPM | 1150 | 58/62 | 4.5 | ||
| SL-19GMA-3 | FE75 (3”) | 750/1000 GPM | 1150 | 58/62 | 4.8 | ||
| SL-19GML-2 | FE65 (2-1/2”) | 350/500/750 /1000 GPM |
900 | 48~62 | 8.0 | Straight/Fog | |
| SL-19GML-3 | FE75 (3”) | 750/1000 LPM | 1040 | 58/62 | 8.0 |

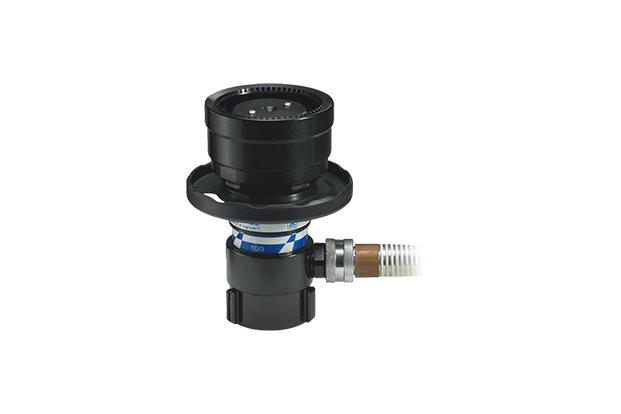

FOAM MONITOR NOZZLE (FOG & STRAIGHT STREAM)
Designed for large flow, long distance fire operation. Connected to fire hydrant or monitor on fire truck to protect oil/gas storage tanks, petrochemical plants or loading terminals.
Applicable either foam or water. Easy to adjust fog or straight stream pattern.
| Model | Size | Flow Rate (@0.7MPa) |
Shooting L(m) | L (mm) | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-15FNA-500 | FE65 (2-1/2”) | 350/500 GPM | 40/45 | 195 | 2.8 | Aluminum | Black Hard Anodized |
| SL-15FNA-750 | FE65 (2-1/2”) | 750 GPM | 50 | 270 | 3.9 | ||
| SL-15FNA-1000 | FE65 (2-1/2”)/ FE75 (3”) |
1000 GPM | 55 | 270/275 | 4.0/4.2 | ||
| SL-15FN-500 | FE65 (2-1/2”) | 350/500 GPM | 40/45 | 200 | 6.4 | Bronze | Option : Ni-Cr Plated |
| SL-15FN-750 | FE65 (2-1/2”) | 750 GPM | 50 | 220 | 9.3 | ||
| SL-15FN-1000 | FE65 (2-1/2”)/ FE75 (3”) |
1000 GPM | 55 | 225 | 9.5 |
FOAM MONITOR NOZZLE (ELECTRIC, FOG & STRAIGHT STREAM)
Electric foam monitor nozzles are designed to use on hard to reach fire area as industrial complexes,
refineries, petrochemical plants and offshore platforms. Fog and straight stream pattern can be controlled remotedly. Available water proof, ex-proof or dust ex-proof as optional.
| Model | Size | Flow Rate (@0.7MPa) |
Shooting L(m) | L (mm) | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|---|---|
| SL-15FNEA-500 | FE65 (2-1/2”) | 350/500 GPM | 40/45 | 195 | 3.6 | Aluminum | Black Hard Anodized |
| SL-15FNEA-750 | FE65 (2-1/2”) | 750 GPM | 50 | 270 | 4.7 | ||
| SL-15FNEA-1000 | FE75 (3”) | 1000 GPM | 55 | 275 | 4.9 | ||
| SL-15FNE-500 | FE65 (2-1/2”) | 500 GPM | 45 | 200 | 7.2 | Bronze | Ni-Cr. Plated |
| SL-15FNE-750 | FE65 (2-1/2”) | 750 GPM | 50 | 220 | 10.2 | ||
| SL-15FNE-1000 | FE75 (3”) | 1000 GPM | 55 | 225 | 10.5 | ||
| SL-19GME 2 | FE65 (2-1/2”) | 350/500 GPM | 48/50 | 900 | 6.8 | Aluminum | Straight / Fog |
| SL-19GME 3 | FE75 (3”) | 750/1000 LPM | 58/62 | 1040 | 8.1 |
PERFORMANCE CURVE & SHOOTING RANGE
