Hose Nozzle

Model Name

SL-9

Series

NOZZLE

View AllView All Series

Data

Manufacturer information

SHILLA FIRE

Fire fighting products, Nozzle, Monitor, Valve, Connector, Fire hydrant and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

SHILLA FIRE

Product Type

Machine

Brand

SKU

134826

Product Name

Hose Nozzle

Model Name

SL-9, SL-9A, SL-10A, SL-11A, SL-10, SL-11, SL-D200, SL-D200A, SL-10MSL-11M, SL-9N, SL-10S, SL-11S, SL-10NW, SL-11NW, SL-10NWQ, SL-11NWQ, SL-11DSL-11Q

Size

Weight

Product Details

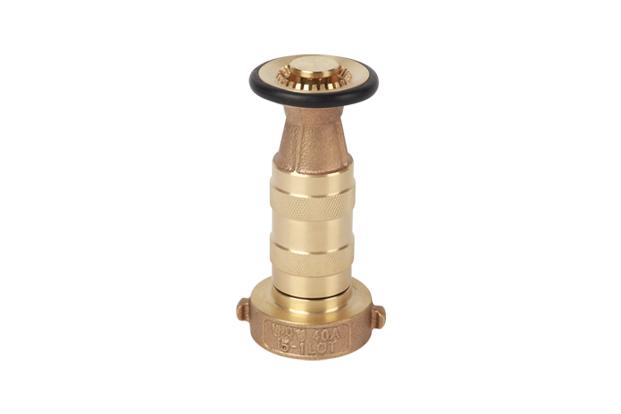

FOG AND STRAIGHT NOZZLE (BRONZE)

These combination nozzles are ideal for use on monitors or fire hoses. With the fog, straight stream along with shut-off itself. It is excellent on those stream flow pattern and easy to handle. The material is bronze with good anti-corrosion.

Model	Size	Flow Rate (@0.7MPa)	L (mm)	W (kg)	Remarks
SL-9	FE25 (1”)	130 LPM	110	1.3	for Hose Reel
SL-9A	FE40 (1-1/2”)	580 LPM	122	1.7	for Hydrant & Fire Truck
SL-10A	FE40 (1-1/2”)	275 LPM	135	0.8	for Hydrant
SL-11A	FE65 (2-1/2”)	580 LPM	160	1.4	for Hydrant
SL-10	FE40 (1-1/2”)	580 LPM	135	1.2	for Hydrant & Fire Truck
SL-11	FE65 (2-1/2”)	1220 LPM	160	2.0
SL-D200	FE40 (1-1/2”)	650/950 LPM	180	2.8
SL-D200A	FE65 (2-1/2”)	950 LPM	290	4.0
SL-10M	Nakajima 40 (1-1/2”)	535 LPM	138	1.4	for Marine Vessel
SL-11M	Nakajima 65 (2-1/2”)	900 LPM	160	2.5	for Marine Vessel

* NH, BSP, BS336, MACHINO connection available.

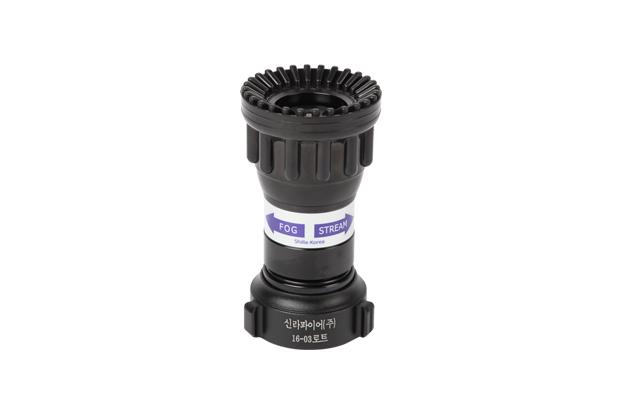

FOG AND STRAIGHT NOZZLE (ALUMINIUM)

These combination nozzles are ideal for use on monitors or fire hoses. It is excellent on fog and straight stream flow pattern.

Most widely used type of nozzle with easy handling and light weight. Lightweight aluminium with black hard anodizing is free from corrosion. A general straight type along with adjustable flow type is available.

Model	Size	Flow Rate (@0.7MPa)	L (mm)	W (kg)	Remarks
SL-9N	FE25 (1”)	130 LPM	112	0.5	for Hose Reel
SL-10S	FE40 (1-1/2”)	313 LPM	130	0.3	for Hydrant
SL-11S	FE65 (2-1/2”)	625 LPM	155	0.5	for Hydrant
SL-10NW	FE40 (1-1/2”)	535 LPM	137	0.5	for Hydrant & Fire Truck Fluorescent (White, Green, Yellow)
SL-11NW	FE65 (2-1/2”)	900 LPM	172	1.0
SL-10NWQ	Machino 40 (1-1/2”)	535 LPM	150	0.6
SL-11NWQ	Machino 65 (2-1/2”)	900 LPM	180	1.3
SL-11D	FE65 (2-1/2”)	378-568-757-950 LPM	300	2.0	for Hydrant / Adjustable Flow
SL-11Q	Machino 65 (2-1/2”)	378-568-757-950 LPM	300	2.2	for Hydrant / Adjustable Flow
