Description

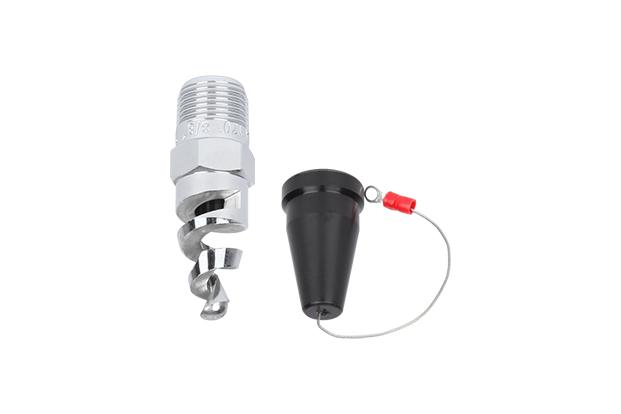

WATER SPRAY NOZZLE (SL-SPN)
The Water Spray Nozzle is designed to protect fire expansion by spraying the water with fine particles like fog.
This nozzle applies cooling and protection of ventilation by spraying finer water than sprinkler heads.
No clogging of the discharge part against foreign substances is existed, and the protective area is wide due to the spiral multi-concentric circle spray pattern.
USE : Firefighting, fire expansion, cooling, oil and gas storage tank,process line on petrochemical and power plant, ship.
| Size | Flow Rate (LPM@3.5Bar) |
Dimension | |||
|---|---|---|---|---|---|
| L | L1 | L2 | H | ||
| 1/2” | 20 ~ 180 | 64 | 16 | 41 | 22 |
| 3/4” | 60 ~ 150 | 64 | 16 | 40 | 27 |
| 3/4” | 160 ~ 180 | 70 | 16 | 46 | 27 |
| 1” | 40 ~ 200 | 70 | 19 | 43 | 34 |
| 1” | 210 ~ 300 | 92 | 20 | 61 | 34 |
The above sizes show standard but it depends on difference figure on the product.
WATER SPRAY NOZZLE (SL-SP-2)
This nozzle is designed to make a water film with fine particles which are forming by rotating the water in straight line thru Vane,a spiral structure. The water film is used for the firefighting and combustion by cooling and smothering effect.
USE : Firefighting, fire expansion, cooling, oil and gas storage tank, process line on petrochemical and power plant, ship.
| Size | Flow Rate (LPM@3.5Bar) |
Dimension | |||
|---|---|---|---|---|---|
| L | L1 | L2 | H | ||
| 1/2” | MAX. 70 | 38 | 16 | 14 | 22 |
| 3/4” | MAX. 90 | 44 | 16 | 20 | 28 |
| 1” | MAX. 140 | 52 | 19 | 25 | 35 |
The above size shows standard but it depends on difference figure on the product.
WATER SPRAY NOZZLE (SL-SP-3)UL LISTED)
This is to spray the water equally in medium particle for wide range by deflector which is able to adopt the various angle.
This is to prevent the fire spreading by absorbing heat at fire.
USE : Firefighting, fire expansion and cooling, oil and gas storage tank, process line on petrochemical and power plant, ship.
| Spray Angle | Contents | Flow Rate Data (@ 3.5Bar STD), UL Certifed (21Kinds) | K-Factor Calculation |
||||||
|---|---|---|---|---|---|---|---|---|---|
| 80Λ, 95Λ, 110Λ, 125Λ, 145Λ |
Flow Rate(LPM) | 32.4 | 48.4 | 61.9 | 80.8 | 110.3 | 150.7 | 194 | Q=K√p |
| K-FACTOR | 17.3 | 25.9 | 33.1 | 43.2 | 59 | 80.6 | 103.7 | ||
The above size shows standard but it depends on difference figure on the product.
WATER SPRAY NOZZLE (SL-SP-1)
This is to spray the water in fine particle like fog by deflector.
This is for firefghting with cooling and smothering, and combustion prevention by forming suitable water film.
USE : Firefighting for petrochemical, process line of hazardous material, removal of dust, cooling, etc.
SELF-PROTECTION SPRAY NOZZLE (SL-SP-1F)
This is designed to protect nozzle installed on fire truck by spraying and forming water film.
DRENCHER HEAD (SL-SP-4 Series)
This is to protect the fire expansion by forming water film at flammable storage tank.
USE : Firefighting on ship, petrochemical plant, underground facilities, etc.
WATER CURTAIN NOZZLE (SL-SP-4W)
This is to be installed on the pipe near the target of fire object at a specific distance and to form the water curtain in V shape for protection of fire spreading
SPECIALTY : High performance and angle change available
USE : Plant fire, oil vessel or LNG loading arm, hazardous material facility
| Model | Type | Size (NPT, PT) |
Flow Rate (LPM@ 0.7MPa) |
Discharge Angle |
Spray Width / Height |
Material |
|---|---|---|---|---|---|---|
| SL-SP-4W | High Impact Fan |
1” | Max.780 | Max.60 | 10m / 15m | Brass + Stainless Steel |
| 1-1/2” | Max. 1250 | 10m / 23m |
