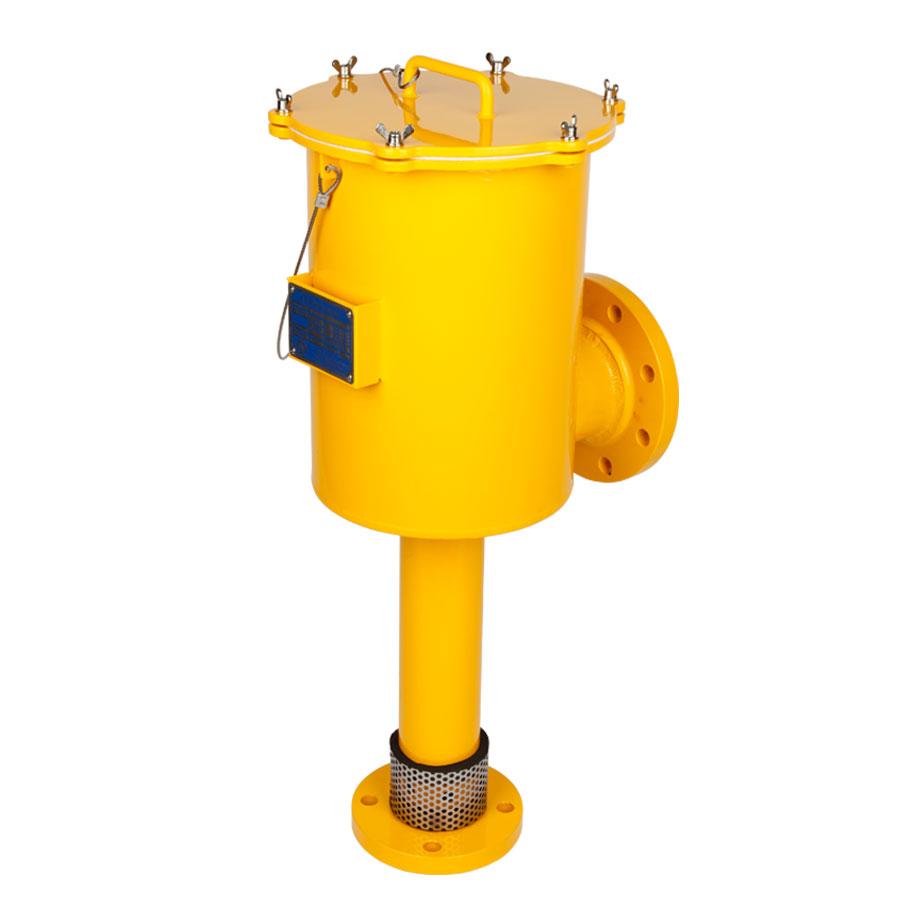

Description
| Model | Size | Flow Rate (LPM@0.35MPa) |
Dimension(mm) | ||||
|---|---|---|---|---|---|---|---|
| Inlet | Outlet | A | B | C | D | ||
| SLC-73-16 | 2” | 2 1/2” | 200 | 610 | 355 | 180 | 8” |
| 3” | 362 | ||||||
| SLC-73-25 | 2 1/2” | 3” | 300 / 400 | 660 | 362 | 180 | 8” |
| 4” | 375 | ||||||
| SLC-73-34 | 3” | 4” | 500 / 750 | 810 | 485 | 230 | 10” |
| 6” | 510 | ||||||
| SLC-73-45 | 4” | 6” | 1000/ 1250/ 1500 | 930 | 540 | 255 | 12” |
| 8” | 565 | ||||||
| SLC-73-56 | 6” | 8” | 2000 / 2500 | 1060 | 620 | 305 | 16” |
| 10” | 645 | ||||||
FOAM CHAMBER – Square Type
(Patent No. 0396584, Test Hole attached type)
It is a test hole attachment type to facilitate foam release test. It is attached to the discharge port, so it is safer from oil mist in case of fire. It is also convenient to use the external test hole cover for foam release test.
|
Features 1. It is possible to check whether seal glass is damaged or not. 2. It is easy to replace seal glass. 3. It is suitable to prevent corrosion due to perfect internal coating. 4. There is a test hole that makes it easy to conduct foam release test.
|
 |
| Model | Size | Flow Rate (LPM@0.35MPa) |
Dimension(mm) | ||||
|---|---|---|---|---|---|---|---|
| Inlet | Outlet | A | B | C | D | ||
| SLC-73S-16 | 2” | 2 1/2” | 100 | 740 | 385 | 165 | 250 |
| 3” | 200 | ||||||
| SLC-73S-25 | 2 1/2” | 3” | 300 / 400 | 740 | 385 | 178 | 280 |
| 4” | |||||||
| SLC-73S-34 | 3” | 4” | 500 / 750 | 870 | 495 | 229 | 330 |
| 6” | |||||||
| SLC-73S-45 | 4” | 6” | 1000/ 1250/ 1500 | 995 | 530 | 254 | 380 |
| 8” | |||||||
| SLC-73S-56 | 6” | 8” | 2000 / 2500 | 1175 | 645 | 305 | 430 |
FOAM MAKER
It is fixed to a foam fire-fighting line of oil storage tank and generates low-expansion air bubbles in case of fire. It discharges to the lower part of the tank to block and extinguish fire by forming foam film on the oil surface. It is low-expansion foaming equipment used in the sub-surface injection system foam equipment.It is fixed to a foam fire-fighting line of oil storage tank and generates low-expansion air bubbles in case of fire. It discharges to the lower part of the tank to block and extinguish fire by forming foam film on the oil surface. It is low-expansion foaming equipment used in the sub-surface injection system foam equipment.
|
Screw Type SL-FM-10 ~ 30 Size : Inlet : PT 2-1/2”(F), Outlet : PT 2-1/2”(M) Material : Bronze Painting : Red or Yellow
Flange Type SL-FM-35 ~ 50 Size : Inlet : ANSI#150 4” R.F Outlet : ANSI#150 4” or 6” R.F Material : Aluminium Casting Painting : Red or Yellow
|
 |
| Model | Inlet Size / Outlet Size |
Flow Rate (LPM@0.35MPa) |
|---|---|---|
| SL-FM-10 | PT 2-1/2” | 380 |
| SL-FM-15 | 570 | |
| SL-FM-20 | 760 | |
| SL-FM-25 | 950 | |
| SL-FM-30 | 1140 | |
| SL-FM-35 | ANSI #150 4” RF FLG. |
1130 |
| SL-FM-40 | 1520 | |
| SL-FM-45 | 1700 | |
| SL-FM-50 | 1900 |
|
DEFLECTOR It shall be installed in such a way that the expansion foam made in the foam chamber during the fire is scattered so that the flame can reach the oil surface which is a combustible material without evaporation. Foam attached to the inner wall of the tank connected to the foam chamber vent hole is not scattered but flows along the inner wall of tank so that the contact between the combustible material and the air is blocked, allowing cooling extinguishing to be rapidly performed. It includes type II and special type, and is made of carbon steel or stainless steel. |
 |
|
VAPOR SEAL It is installed inside the foam chamber in order to prevent the leakage of harmful substances such as oil mist generated from the combustible substance stored in the tank and to prevent damage of the fire extinguishing equipment due to explosion in case of fire. Seal glass made of glass is mainly used, but rupture disc may be used depending on the type of stored substances or when the oil mist pressure is high. |
 |
Foam Chamber Performance Curve for Each Product
|
RISER STRAINER (SL-59RS) It is a filtration device for preventing foreign matter from entering, which is installed in the lower part of the piping of the foam chamber fire extinguishing system. Foreign substances such as sand, rust and metal impurities are filtered by the built-in metal screen and accumulated at the bottom of the outer part of the screen. And foreign substances generated by corrosion inside the pipe connected to the foam chamber are accumulated at the bottom of the inner part of the screen, thereby preventing degradation due to foreign substances when discharging foam. Re-assembling is also easy after removing foreign materials by detaching the lower cover flange. ㆍFlange Size : KS 10K or ANSI #150 (RF or FF) ㆍTest Pressure : 20 barg. ㆍMaterial(Body) : Carbon Steel or Stainless Steel or Ductile ㆍPainting : Red or Yellow
|
 |
| Model | Size | L |
|---|---|---|
| SL-59RS-1.5 | 1-1/2” | 300 |
| SL-59RS-2 | 2” | 325 |
| SL-59RS-2.5 | 2-1/2” | 360 |
| SL-59RS-3 | 3” | 395 |
| SL-59RS-4 | 4” | 440 |
| SL-59RS-5 | 5” | 500 |
| SL-59RS-6 | 6” | 580 |
|
FLEXIBLE TUBE (SL-59FT) ㆍFlange Size : KS 10K or ANSI #150 (RF or FF) ㆍTest Pressure : 20 barg. ㆍMaterial(Wire) : Stainless Steel |
 |
| Model | Size | Length(mm) |
|---|---|---|
| SL-59FT-2 | 2” | 500 ~ 1000 |
| SL-59FT-2.5 | 2-1/2” | |
| SL-59FT-3 | 3” | |
| SL-59FT-4 | 4” | |
| SL-59FT-5 | 5” | |
| SL-59FT-6 | 6” |
|
Y-TYPE STRAINER (SL-59YS) Size : 2” ~ 10” Flange Size : KS 10K or ANSI #150 (RF or FF) Test Pressure : 20 barg. Material(Body) : Cast Iron |
 |
| Model | Size | Length(mm) |
|---|---|---|
| SL-59FT-2 | 2” | 500 ~ 1000 |
| SL-59FT-2.5 | 2-1/2” | |
| SL-59FT-3 | 3” | |
| SL-59FT-4 | 4” | |
| SL-59FT-5 | 5” | |
| SL-59FT-6 | 6” |
MEDIUM EXPANSION FOAM NOZZLE
It is a small tube to rapidly extinguish fire by discharging large amount of foam with small amount of water mixed with foam agents higher than 50 times in oil, gas, vehicle and general fire. It is lightweight and easy to use, which includes a movable type that can be used by connecting to a fire hose, and a fixed type that is installed around dangerous materials. The movable type is equipped with a ball valve, a pressure gauge and a handle, so it is quick and convenient to respond the situation on the fire scene. The fixed type is also manufactured by flannel type or pipe screw type.
| Model | Size | Flow Rate (LPM@0.35MPa) |
EXP. Ratio |
L (mm) |
W (kg) |
Material | Remarks | |
|---|---|---|---|---|---|---|---|---|
| SL-31-4 | NH 11⁄2” | 250 | More than 50 times |
490 | 3.5 | Aluminium & Stainless Steel |
AFFF 3% |
Movable |
| SL-31-5 | NH 21⁄2” | 400 | 760 | 6.7 | ||||
| SL-31-4F | Flange 2” | 250 | 490 | 3.5 | Brass & Stainless Steel |
Fixed | ||
| SL-31-5F | Flange 2” | 400 | 760 | 6.7 | ||||
| SL-31-6 | BSP 2” | 710 | 580 | 8.9 | Aluminium & Stainless Steel |
|||
HIGH EXPANSION FOAM GENERATOR
This generates high expansion foam with self-driving force generated while passing through a nozzle without external power to extinguish fire. The blowing fan operates when water mixed with the foaming agent is sprayed on the foam generating screen through the nozzle.
At this time, the wind pushes water sprayed on the screen, creating small, stable foam. Thus formed high-expansion foam covers or encloses the object to be fired, thereby blocking the surrounding air.
There are fixed and movable types, and some products can send the foam farther and precisely when using the foam-discharging tube. It is mainly suitable for the production and storage facilities of dangerous goods such as oil, gas, chemical, etc., and places such as aircraft hangars, ships, tunnels, warehouses, etc.
MEDIUM-SIZED / LARGE-SIZED HIGH EXPANSION FOAM GENERATOR (SL-31-7 / SL-31-8)
This product is a water blowing ventilating fan, which is a high-expansion facility that expands foam liquid to a ratio of 700 times or more by passing it through the screen. It is a device that is effectively used to suppress fire in airplane hangars, garages, parking lots, and places for storing and handing special combustibles.
Features
1. It is a device to operate a fan by hydraulic power, which requires no additional electricity or hydraulic driving unit.
2. It can be used as a movable type by being equipped with a mixer and a foam tank in the fixed type or a trailer.
3. Stainless steel mesh is used.
4. The high expansion foam was generated by the small amount of water, minimizing the consumption of fire-fighting water and foaming agent.
5. The outer body is made of light and durable material, and the internal parts are made of bronze and stainless steel.
6. Low vibration and noise during rotation, and it is possible to install horizontally or vertically.
| Model | Size | Flow Rate (LPM@0.4MPa) |
EXP. Ratio |
Material | Remarks |
|---|---|---|---|---|---|
| SL-31-7 | 1235x1080x1110 | 250 | 700 | Body : Carbon Steel or Stainless Steel Nozzle : Brass Screen : Stainless Steel |
Fixed type, Synthetic surfactant foam |
| SL-31-8 | 1730x1670x1260 | 480 |
|
SMALL-SIZED HIGH-EXPANSION FOAM GENERATOR (SL-31-3SS, SL-31-3P) It is a high-expansion foam generator which generates at least 300 times expansion foam. It is light and durable, and stable with low noise and vibration. It is basically fixed installation, but it can be used as a movable type. It is suitable for installation of confined spaces such as oil and gas storage facilities, warehouses, tunnels, etc., and when it is used as a mobile type, it can send foam accurately to communication facilities, underground tunnels and basement using foam-discharging tube, which allows effective firefighting without any waste of foam agent. |
 |
| Model | Size (W x H x D) |
Flow Rate (LPM@0.4MPa) |
EXP. Ratio |
Material | Remarks | |
|---|---|---|---|---|---|---|
| SL-31-3SS | 527 x 500 x 790 | 190 | 300 | Body : Carbon Steel or Stainless Steel Nozzle : Brass |
Fixed | Synthetic surfactant foam |
| SL-31-3P | 650 x 695 x 790 | 190 | 300 | Movable | ||
|
HIGH EXPANSION GENERATOR (High-expansion generator with a built-in mixer) It is a high expansion generator which can make high expansion foam at least 500 times in volume. As it is equipped with a mixer, it is possible to inhale the foam liquid itself. The rotating force of the blowing fan by the built-in turbine generates strong wind speed, so that the expansion foam can be pushed out at a high speed, sending the foam away quickly when attaching a foam discharging tube. It has a function to exhaust fume such as toxic gas in a confined area with a built-in by-pass valve and a nozzle shutoff valve, and movable-type with wheels and fixed-type products are also available.
Features 1. It is hydraulic drive equipment, which needs no separate operating system. 2. It has a function of self-inhalation and mixing of the foaming agent. 3. It has an exhaustion function for removing toxic gas with by-pass function. 4. It is light and strong and easy to move. 5. The outer body is made of FRP and the inner parts are made of bronze. |
 |
| Model | Size (W x H x D) |
Flow Rate (LPM@0.4MPa) |
EXP. Ratio |
Material | Remarks | ||
|---|---|---|---|---|---|---|---|
| SL-31-3 | 885 x 985 x 435 | 190 | 500 | FRP & BRONZE |
Movable | Synthetic surfactant foam |
|
| SL-31-3 | 190 | 500 | Fixed | ||||
| SL-31-3S | 190 | 500 | Exhaustion/ movable | Including an exhaustion duct |
|||
