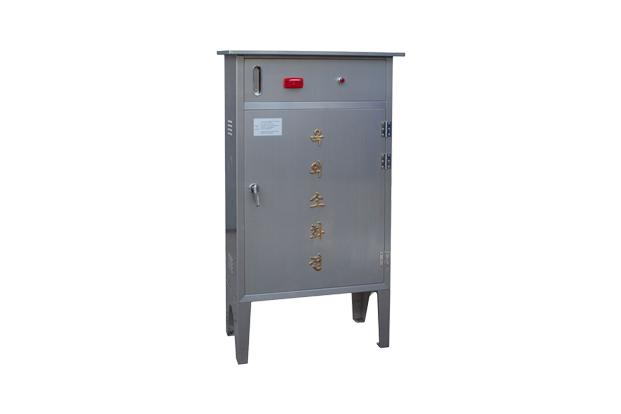

OUTDOOR HYDRANT BOX
It is installed outdoors of the firefighting target for the purpose of external firefighting and prevention of burning on nearby buildings. The upper part is installed with indicator light for showing the operation of the pressurized water supply device, and the lower part is stored with the firefighting equipment. (fire hose, nozzle, connector, wrench, etc.)
| Size (mm) | Material | Remarks | |
|---|---|---|---|
| A(가로) | 700 ~ 1300 | Stainless Steel (1.5T or more) or Carbon Steel (1.6T or more) |
Door Area : 0.5m2 or more Short-side area : 500mm or more Internal Width : 180mm or more Option : Materials such as firefighting hose, KFI certified |
| B(세로) | 1200 ~ 1500 | ||
| C(폭) | 200 ~ 500 | ||
| D(LEG) | 300 | ||
| E(상부도어폭) | 150 ~ 250 |
INDOOR HYDRANT BOX
It is installed inside the building, and there is self standing type, wall mounting type.
The fire alarm system is installed on the top, and the bottom is stored with fire hose and nozzle to quickly extinguish the fire on emergencies.
| Size (mm) | Material | Remarks | |
|---|---|---|---|
| A(Length) | 600 ~ 1000 | Stainless Steel (1.5T or more) or Carbon Steel (1.6T or more) |
Door Area : 0.5m2 or more Short-side area : 500mm or more Option : Materials such as firefighting hose, KFI certified |
| B(Width) | 1200 ~ 1500 | ||
| C(Height) | 180 ~ 300 | ||
| D(LEG) | 50 ~ 500 |
EMERGENCY FIRE BOX
The product is installed in locations difficult for quick firefighting or around the underground hydrant such as the residential area difficult for fire trucks to enter into traditional markets and high-altitude areas, and the purpose is to enable initial firefighting.
The box has fire hose, nozzle, fire extinguisher, wrench, and standpipe for supplying firefighting water from the underground hydrant, and wrench for Open/Close.
ㆍSize : 900(W) x 500(D) x 1500(H)
ㆍMaterial : Stainless Steel (1.5T or more) or Carbon Steel (1.6T or more)
ㆍPainting : Stainless Steel – Itself, Carbon Steel – Red
ㆍContent : Fire Hose(40A, 65A), Nozzle, Wrench,
ㆍStandpipe, Fire Extingusher, Connector
TEST VALVE BOX
The box is for inspecting the water pressure and valve operation for normal operation of the sprinkler facility.
ㆍSize : 300(W) x 200(D) x 500(H)
ㆍContent : Stainless Steel (1.5T or more) or Carbon Steel (1.6T or more)
