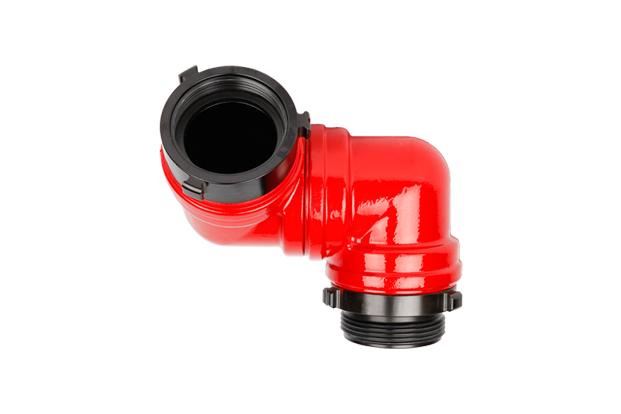

ROTATION CONNECTOR (7720 degrees) (SL-54LH / SL-54LHA) PATENED
During the fire operation, fire hose can be bended and twisted to occur with decrease in water pressure discharged, or hose damage.
Due to these reasons, an initial fire extinguishing possibly delayed and increase casualties and property damage.
The rotation connection developed to solve these problems can be connected to the indoor & outdoor hydrant to be rotated in any direction (up-down, left-right), and the decrease in discharged water pressure from hose bending and twisting can be prevented. When connecting the fire hose to the hydrant, damage can be prevented and safety can be improved, and the product can be used without decrease in the performance of the hydrant fire hose.
 |
720 degrees rotation connector MODEL : SL-54LH / SL-54LHA SIZE : NH1-1/2”, NH2-1/2” ANGLE : 720 degrees TEST PRESSURE : 4MPa WORKING PRESSURE : 3MPa MATERIAL : ALUMINIUM COLOR : FIRE RED WEIGHT : 1.0 kg, 2.06kg REMARK : Patented & KFI certified |
L-TYPE CONNECTOR (SWIVEL TYPE)
The connector is used on the fire truck and hydrant, and the hose connector is rotated to the hose direction to prevent the bending to have no fire hose damage and pressure loss.
| Model | Inlet Size | Outlet Size | Angle | Remarks |
|---|---|---|---|---|
| SL-54LS | NH1-1/2”(F) / PT2”(F) | NH1-1/2”(M) | 90 | Bronze |
| SL-54LS-A | NH1-1/2”(F) | NH1-1/2”(M) | Aluminum | |
| SL-54LAS | NH2-1/2”(F) | NH2-1/2”(M), Nakajima 2-1/2”(M) |
Bronze | |
| SL-54LAS-A | NH2-1/2”(F) | NH2-1/2”(M) | Aluminum |
| Model | Inlet Size | Outlet Size | Angle | Remarks |
|---|---|---|---|---|
| SL-54L | NH1-1/2”(F) | NH1-1/2”(M) | 90 | Bronze / Aluminum |
| SL-54LT | NH1-1/2”(F) | NH1-1/2”(M) | 30 | |
| SL-54LA | NH2-1/2”(F) | NH2-1/2”(M) | 20 | |
| SL-54LB | NH3”(F) | NH3”(M) | 70 | |
| SL-54LC | NH4”(F) | NH4”(M) | 45 | |
| SL-54LD | NH5”(F) | NH5”(M) | 70 |
