This product is manufactured by
SHILLA FIRE
Manufacturer information
SHILLA FIRE
Fire fighting products, Nozzle, Monitor, Valve, Connector, Fire hydrant and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SHILLA FIRE
Product Type
Machine
Brand
-
SKU
134834
Product Name
“Y” Ball Valve
Model Name
SL-32, SL-32L, SL-32Q, SL-34, SL-34Q, SL-34A, SL-37S, SL-37, SL-37Q, SL-37F, SL-37FG, SL-38, SL-38Q, SL-38F, SL-38FG
Size
-
Weight
-
Product Details

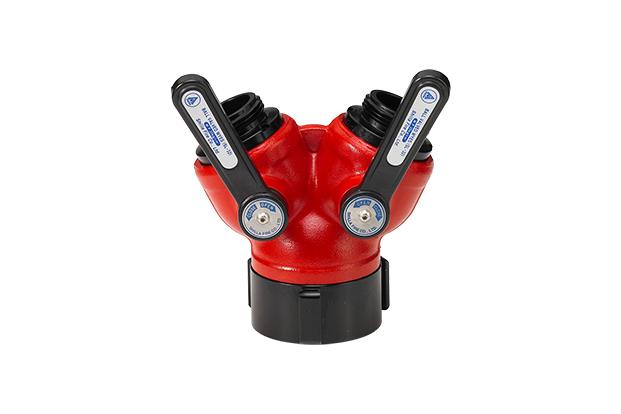

“Y” TYPE BALL VALVE
The Y-type ball valve is connected to the firefighting water supply line such as the hydrant or fire truck, and water supply and transmission are enabled on 2 or more lines. Bronze or cast iron is suitable for fixed-type and light weight aluminium is suitable for portable type.
| Model | Inlet Size | Outlet Size | Remarks | |
|---|---|---|---|---|
| SL-32 | NH2-1/2”(F) | NH1-1/2”(M*2) | Water Supply |
•Material : Bronze / Aluminum / Cast Iron •Test Pressure : 2MPa BSQ, STORZ, Nakajima possible |
| SL-32L | NH2-1/2”(F) | NH1-1/2”(M*2) | ||
| SL-32Q | Machino Quick 2-1/2”(F) |
Machino Quick 1-1/2”(M*2) |
||
| SL-34 | NH2-1/2”(F) | NH1-1/2”(M*3) | ||
| SL-34Q | Machino Quick 2-1/2”(F) |
Machino Quick 1-1/2”(M*3) |
||
| SL-34A | NH2-1/2”(F) | NH2-1/2”(M)* NH1-1/2”(M*2) |
||
| SL-37S | NH2-1/2”(F) | NH2-1/2”(M*2) | ||
| SL-37 | NH4”(F) | NH2-1/2”(M*2) | ||
| SL-37Q | NH4”(F) | Machino Quick 2-1/2”(M*2) |
||
| SL-37F | 4”ANSI#150 FLG | NH2-1/2”(M*2) | ||
| SL-37FG | 4”ANSI#150 FLG | NH2-1/2”(M*2) | ||
| SL-38 | NH2-1/2”(F*2) | NH4”(F) | Water Conveyance |
|
| SL-38Q | Machino Quick 2-1/2”(F*2) |
NH4”(F) | ||
| SL-38F | NH2-1/2”(F*2) | 4”ANSI#150 FLG | ||
| SL-38FG | NH2-1/2”(F*2) | 4”ANSI#150 FLG | ||
