Description

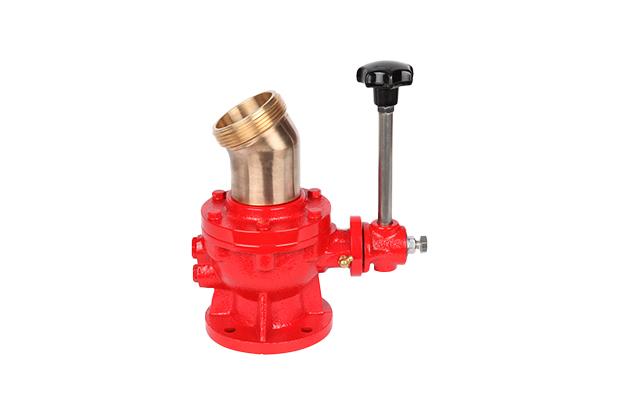

BALL VALVE for Fire Truck
The product is an eco-friendly & lightweight valve special for fire trucks, and lubricant is not required. It is safe from foreign substances, and the valve has excellent sealing effect even in poor environments.
| Model | Inlet Size | Outlet Size | Remarks |
|---|---|---|---|
| SL-48B-AE(Supply) | FLG 2-1⁄2” | NH2-1/2” (Male) (25 degrees) | •Test Pressure : 2MPa •Finishing : Anodizing •Flange : Fire Truck exclusive •Material : Alluminum (Option-Bronze, Ductile) |
| SL-48B-AS(Supply) | FLG 2-1⁄2” | NH2-1/2” (Male) | |
| SL-48F-A(Suction) | NH2-1/2” (Female) | FLG 2-1⁄2” | |
| SL-48G-A(Suction) | NH2-1/2” (Male) | FLG 2-1⁄2” | |
| SL-48D-A(Main Valve) | FLG 2-1⁄2” | FLG 2-1/2”/ Square Axle | |
| FLG 2-1⁄2” | FLG 2-1/2”/ Lever-type | ||
| PT 2-1⁄2” | PT 2-1/2”/ Lever-type |
| Model | Inlet Size | Outlet Size | Remarks |
|---|---|---|---|
| SL-48B(Supply) | FLG 2-1⁄2” | NH2-1/2” (Male) |
•Test Pressure : 2MPa
•Finishing : Red Painting •Flange : Fire Truck exclusive •Material : Cast Iron & Bronze /Stainless Steel & Bronze |
| SL-48F(Suction) | NH2-1/2” (Female) | FLG 2-1⁄2” | |
| SL-48G(Suction) | NH2-1/2” (Male) | FLG 2-1⁄2” | |
| SL-48C(Suction) | NH3” / 4” (Male) | FLG 3”/4″ | |
| SL-48D(Main) | FLG 2-1⁄2”, 3″, 4″ | FLG & Pipe Joint 2-1⁄2”, 3″, 4″ |
The safety valve is used by mounting on the pump facility such as on the fire truck, and the pressure is maintained under set pressure even in abnormal high pressure. The safety valve protects facilities and lives.
RELIEF VALVE
ㆍSize : PT & NPT 2-1/2”
ㆍMaterial : Bronze
ㆍWorking Pressure : 0.5MPa ~ 1.7MPa
ㆍBasic Pressure Setting is 0.85MPa
