Manufacturer
SHILLA FIRE
Product Type
Machine
Brand
-
SKU
134830
Product Name
Branch Pipe / Tip
Model Name
SL-1, SL-1A, SL-2, SL-2Q, SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7MP-40, SL-7MP-65, SL-7NR-40, SL-7NR-65, SL-6-1, SL-6A, SL-6BA, SL-6-3, SL-8A, SL-8B, SL-8B-L, SL-8C, SL-8A-S, SL-8D
Size
-
Weight
-
Product Details

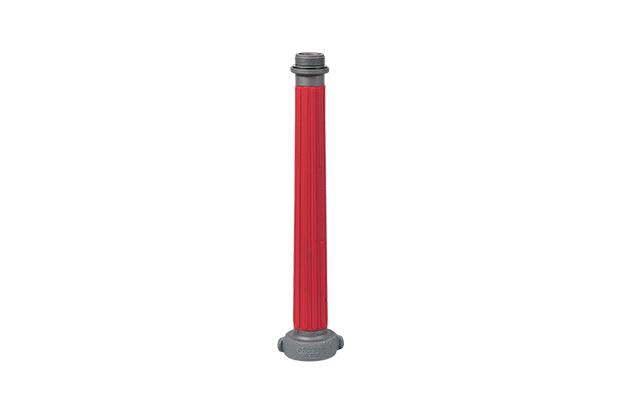

BRANCH PIPE
A broad range and rugged compact design to use with either monitor or fire hose for practically every fire ground. Non-reaction playpipes, rubberized handle to avoid slipping or shoulder strap for better balance. Solid straight stream pattern to provide better reach and effective fire operation.
| Model | Size | L (mm) | W (kg) | Application Nozzle | Remarks |
|---|---|---|---|---|---|
| SL-1,SL-1A | FE40,FE65 | Straight Nozzle | Bronze | ||
| SL-2 | FE40 X FB40 | 365 | 0.6 | SL-6-1, SL-8A | AL, Bubber Coated |
| SL-2Q | Machino40 X FB40 | 370 | 1.3 | BR, NiCr plated | |
| SL-3A | FE65 X FB65 | 300 | 1.1 | SL-6A, 6B, SL-8B, 8BA, 8C | AL, Hard Anodized |
| SL-3AQ | Machino65 X FB65 | 370 | 1.2 | ||
| SL-3 | FE65 X FB65 | 475 | 2.0 | BR, Ni-Cr plated | |
| SL-4Q | Machino65 X FB65 | 490 | 2.4 | ||
| SL-7MP-40 | FE40 X FE40 | 300 | 0.9 | SL-8AS, SL-10NW, SL-14S | |
| SL-7MP-65 | FE65 X FE65 | 455 | 2.6 | SL-8D, SL-11NW, SL-15B | |
| SL-7NR-40 | FE40 X FE40 | 370 | 1.3 | SL-8AS, SL-10NW, SL-14S | AL.Hard Anodized Non Reaction |
| SL-7NR-65 | FE65 X FE65 | 470 | 2.2 | SL-6A, 6B, SL-6-3, SL-8B, SL-8C |

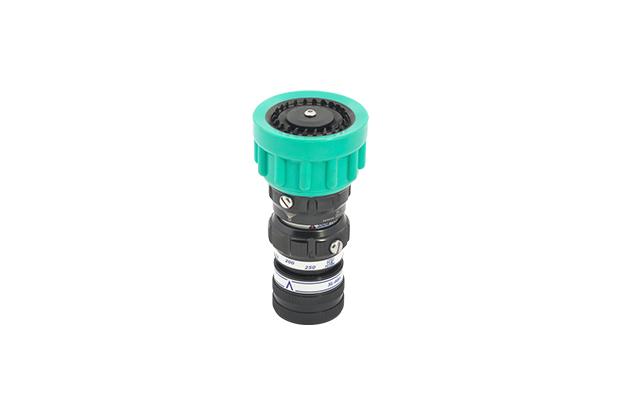

TIP (STRAIGHT / FOG & STRAIGHT)
Tips are made to use together with branch pipes. Various sizes of smooth tapered bore tips or fog and straight stream tips are available.
| Model | Size | Flow Rate (@0.7MPa) |
Material | L (mm) | Application Nozzle | Remarks |
|---|---|---|---|---|---|---|
| SL-6-1 | FB40 | 275 LPM | Aluminum | 90 | SL-2, SL-2Q | Straight & Fog |
| SL-6A | FB65 | 900 | 155 | SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7NR-65 |
Straight & Fog | |
| SL-6BA | FB65 | 100~250 GPM | 200 | Straight & Fog / Adjustable Flow |
||
| SL-6-3 | FE65 | 660 LPM | 260 | Straight & Fog / Valve Type |
||
| SL-8A | FE40 | 210~630 LPM | Aluminium / Bronze |
80 | SL-2, SL-2Q | Ø11-19 |
| SL-8B | FB65 | 210~630 LPM | 130 | SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7NR-65 |
Ø11-19 | |
| SL-8B-L | FB65(Long) | 690~2500 LPM | 200 | Ø20-38 | ||
| SL-8C | FB65 | 690~2500 LPM | 130 | Ø20-38 | ||
| SL-8A-S | FE40 | 210~1800 LPM | 130 | SL-7MP-40, SL-7NR-40 |
Ø20-38 | |
| SL-8D | FE65 | 1115~5000 LPM | 175 | SL-7MP-65 | Ø25-50 |
