Description

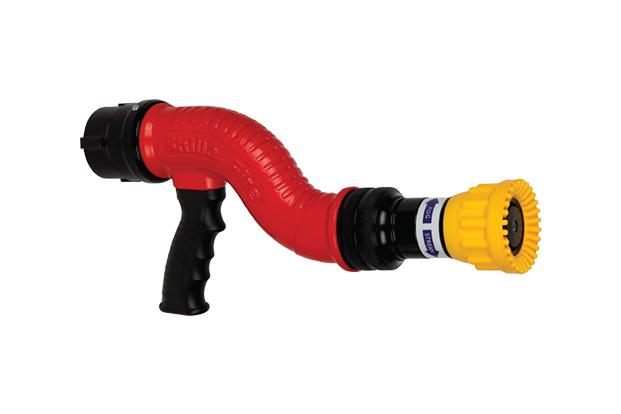

NON-REACTION NOZZLE (SL-79MP / SL-79MPA)
Non-reaction nozzle is designed to eliminate reaction force by offsetting reaction force and it’s resistance force.
By eliminating reaction force, nozzle gives easier and better control to fire fighters during fire operation. Various types of replaceable nozzles are available.
| Model | Type | Size | Flow Rate |
|---|---|---|---|
| SL-79MP-S | Fog and Straight | FE40 | 535LPM /0.7MPa |
| SL-79MP-DN | Adjustable Flow Rate and Fog & Straight) | FE40 | 110~470 LPM /0.7MPa |
| SL-79MP-VN | Shut off Ball Valve type | FE40 | 470 LPM /0.7MPa |
| SL-79MPA-S | Fog and Straight | FE65 | 900 LPM /0.7MPa |
| SL-79MPA-DN | Adjustable Flow Rate and Fog & Straight) | FE65 | 380~945 LPM /0.7MPa |
| SL-79MPA-VN | Shut off Ball Valve type | FE65 | 945 LPM /0.7MPa |

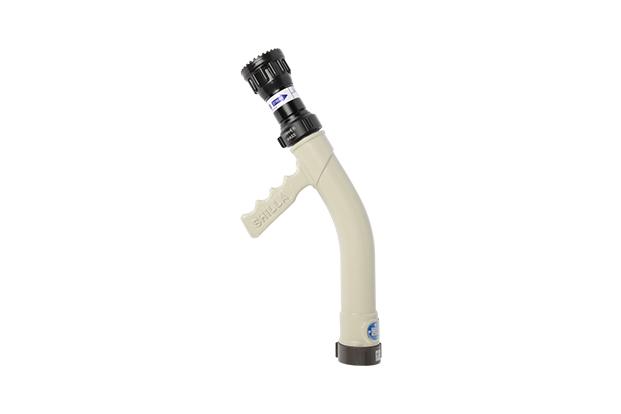

PRESSURE REDUCING NOZZLE (SL-79MS / SL-79M / SL-79MT)
Pressure reducing nozzle is designed as a curved waterway and a few square pieces are specially placed at interior to reduce water reaction force. Shoulder strap as optional. Various types of replaceable nozzles are available.
| Model | Size | Flow Rate (@0.7MPa) |
W (kg) | Meterial | Application Nozzle |
Remarks |
|---|---|---|---|---|---|---|
| SL-79MS | FE40 (1-1/2”) | 535 LPM | 1.8 | Aluminum | SL-10NW | |
| SL-79M | FE65 (2-1/2”) | 900 LPM | 3.0 | SL-6A | Shoulder Strap | |
| SL-79MT | FE65 (2-1/2”) | 900+275 LPM | 4.4 | SL-6-1/SL-6A | Shoulder Strap |
MIST WATER NOZZLE (SL-69D)
SL-69D
Mist water nozzle is designed to use at initial fire attack of forest or sub-surface fire. Easy shut-off, straight stream, mist and fog pattern with lever.
Special Feature : Straight Stream, Mid Fog
MIST WATER CURTAIN NOZZLE (SL-69F)
SL-69F
Mist water curtain nozzle has similar design as water mist nozzle but produces more fine mist which is essential to make cooling effect during firefighting.
Special Feature : Water curtain with fine spray pattern
γWater curtain with fine spray pattern.
γThree flow pattern : Straight, Mist, Fog.
γBall valve with three steps : Straihgt-Shut Off-Straight.
γExcellent for Oxygen block and cooling effect.
γDesign Registration : No. 0369001
| Model | Size | Flow Rate (@0.7MPa) |
L (mm) | W (kg) | Material | Remarks |
|---|---|---|---|---|---|---|
| SL-69D | FE40 (1-1/2”) | 150/250 LPM | 412 | 1.9 | AL. Hard Anodized |
Acessories : High Fog Tip, High Flow Tip, Low Flow Tip |
| SL-69F | High Fog : 190 LPM | 460 | 2.2 |
OIL DISPERSANT NOZZLE (SL-68E)
SL-68E
Oil dispersant nozzle is designed to clear spilled oli from contaminated area. Dispersant is sucked through pick-up tube and mixed with water in the nozzle. Various types connections are available.
| Model | Size | Flow Rate | W (kg) | Meterial | Remarks |
|---|---|---|---|---|---|
| SL-68E | NPSH 1-1/2” (NH 1-1/2″) |
290 LPM (@0.7MPa) |
3.1 | Al | Pick-up Hose |
*FE, BSP, NAKAZIMA
DRY POWDER NOZZLE (SL-68D)
SL-68D
Hose reel nozzle for dry chemical system Fog & Straight Stream
PISTOL GRIP TYPE
| Model | Discharge Rate |
Shooting Length |
Size | W (kg) | L (mm) |
|---|---|---|---|---|---|
| SL-68D | 30~60kg/30sec | 10~15M | Inlet-1″ | 1.3 | 300 |
CELLAR NOZZLE (SL-69CNA) & CAGE (SL-69CNC)
SL-69CNA
Cellar Nozzle is used to attack fire at hard to reach place like basement, etc.
Ball bearing revolving action with rigid chrome plated bronze base.
* How to use (option)
1. Use together with nozzle cage
2. Connect with branch pipe
3. Add shut-off valve on the branch pipe
| Model | Size | Flow Rate | W (kg) | Material |
|---|---|---|---|---|
| SL-69CNA | FE65(2-1/2”) | 1060 LPM @0.7MPa |
2.6 | Bronze |
