Main Control Panel
방폭형 Aluminium Diecasting Box에 Panel을 구성하여 석유화학공장과 같이 위험물 지역에서도 사용할 수 있도록 제작되었다.
| 기능 |
: Control Power – ON, OFF Switch & Lamp
Monitor – Left & Right, Up & Down Switch
Nozzle – Straight & Fog Switch
M.O.V. – Open & Close Switch & Fault Lamp |
| Option |
Osillating – Start / Stop Switch & Range control Switch
비상전원시스템(Battery), 무선리모콘 작동기능 |
| Power Supply |
: DC 24V or AC 220V |
| 내압방폭등급 |
: EX d IIC T5 IP66 |
| 분진방폭등급 |
: EX Td A21 IP56 |
| 크기 |
: Panel : 350mm(W)X600mm(H)X290mm(D)
Case : 560mm(W)X1560mm(H)X400mm(D) |
| 재질 |
: Panel : Aluminium Alloy Casting
Case : Stainless Steel |
|
MAIN CONTROL PANEL
|
|
Terminal Box (Joint Box)
Monitor 와 Main Controller 사이에 설치된 연결 BOX이다.
| 내압방폭등급 |
: EX d IIC T5 IP66 |
| 분진방폭등급 |
: EX Td A21 IP56 |
| 크기 |
: Panel : 350mm(W)X600mm(H)X290mm(D)
Case : 560mm(W)X1560mm(H)X400mm(D) |
| 재질 |
: Panel : Aluminium Alloy Casting
Case : Stainless Steel |
|
TERMINAL BOX
|
|
Emergency Battery(Option)
| 내압방폭등급 |
: EX d IIC T5 IP66 |
| 분진방폭등급 |
: EX Td A21 IP56 |
| 크기 |
: Panel : 350mm(W)X600mm(H)X290mm(D)
Case : 560mm(W)X1560mm(H)X400mm(D) |
| 재질 |
: Panel : Aluminium Alloy Casting
Case : Stainless Steel |
|
EMERGENCY BATTERY
|
|

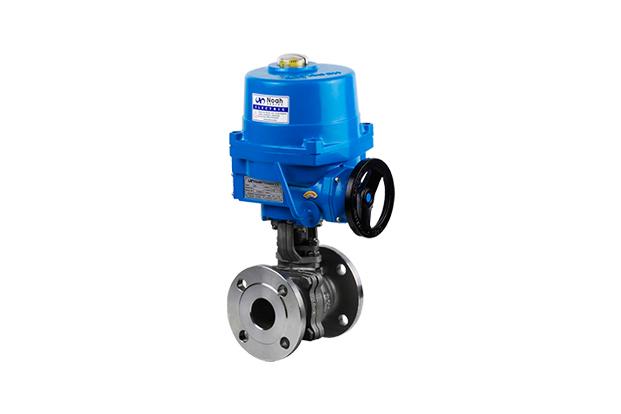

Motorized Operated Valve
| Type |
: Ball Valve / Butterfly Valve / Gate Valve |
| Size |
: 2-1/2”, 3”, 4”, 6”, 8” |
| 재질 |
: Stainless Steel / Cast steel |
| 방폭등급 |
: EX d IIC T4 |
|
|
|
Receiver
| Signal |
: Digital Code |
| Respond |
: 0.03sec |
| At Rest Current |
: Max.0.5A |
| OperatingTemperatureRange |
: -20oC ~ +70oC |
| Material |
: PC-ABS |
|
RECEVIER
|
|
Wireless Controller
| 기능 |
: Power – ON, OFF Button & Lamp
M.O.V – Open, Close Button |
| Monitor |
: Up, Down, Left, Right Button |
| Nozzle |
: Straght, Fog Button |
| 작동범위 |
: MAX.400Meter |
|
WIRELESS CONTROLLER
|
