지금 보고 계신 제품의 제조사에요
신라파이어(주)
제조사
신라파이어(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
134830
제품명
Branch Pipe / Tip
모델명
SL-1, SL-1A, SL-2, SL-2Q, SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7MP-40, SL-7MP-65, SL-7NR-40, SL-7NR-65, SL-6-1, SL-6A, SL-6BA, SL-6-3, SL-8A, SL-8B, SL-8B-L, SL-8C, SL-8A-S, SL-8D
사이즈
-
중량
-
제품 상세 정보

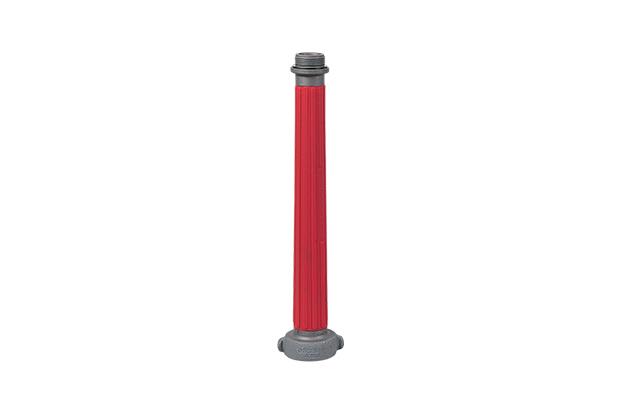

파이프식관창 (BRANCH PIPE)
소방호스 및 방수총에 연결하여 사용하는 Play Pipe로 상단의 용도에 적합한 노즐 팁을 부착하여 사용한다. 반동 감소형과 고무 코팅처리 또는 멜빵을 부착하여 더욱 편리하고 안전하게 제작된 제품도 있다.
| Model | Size | L (mm) | W (kg) | Application Nozzle | Remarks |
|---|---|---|---|---|---|
| SL-1,SL-1A | FE40,FE65 | Straight Nozzle | Bronze | ||
| SL-2 | FE40 X FB40 | 365 | 0.6 | SL-6-1, SL-8A | AL, Bubber Coated |
| SL-2Q | Machino40 X FB40 | 370 | 1.3 | BR, NiCr plated | |
| SL-3A | FE65 X FB65 | 300 | 1.1 | SL-6A, 6B, SL-8B, 8BA, 8C | AL, Hard Anodized |
| SL-3AQ | Machino65 X FB65 | 370 | 1.2 | ||
| SL-3 | FE65 X FB65 | 475 | 2.0 | BR, Ni-Cr plated | |
| SL-4Q | Machino65 X FB65 | 490 | 2.4 | ||
| SL-7MP-40 | FE40 X FE40 | 300 | 0.9 | SL-8AS, SL-10NW, SL-14S | |
| SL-7MP-65 | FE65 X FE65 | 455 | 2.6 | SL-8D, SL-11NW, SL-15B | |
| SL-7NR-40 | FE40 X FE40 | 370 | 1.3 | SL-8AS, SL-10NW, SL-14S | AL.Hard Anodized Non Reaction |
| SL-7NR-65 | FE65 X FE65 | 470 | 2.2 | SL-6A, 6B, SL-6-3, SL-8B, SL-8C |

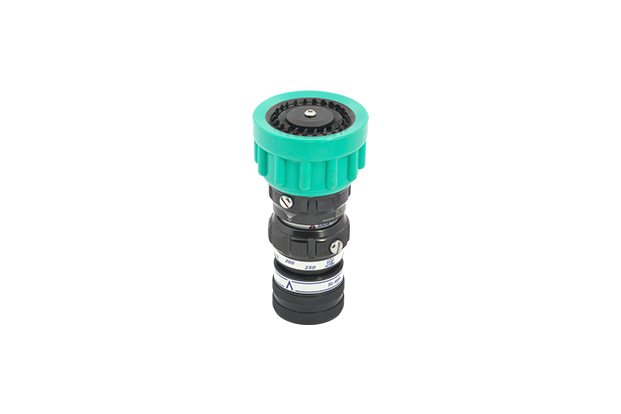

노즐팁 (NOZZLE TIP)
Branchpipe (파이프식 관창)에 연결하여 사용하는 노즐팁으로 직,방사 전환이 원활토록 설계, 제작되었다.
| Model | Size | Flow Rate (@0.7MPa) |
Material | L (mm) | Application Nozzle | Remarks |
|---|---|---|---|---|---|---|
| SL-6-1 | FB40 | 275 LPM | Aluminum | 90 | SL-2, SL-2Q | 직방사형 |
| SL-6A | FB65 | 900 | 155 | SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7NR-65 |
직방사형 | |
| SL-6BA | FB65 | 100~250 GPM | 200 | 직방사/유량조절형 | ||
| SL-6-3 | FE65 | 660 LPM | 260 | 직방사/Valve Type | ||
| SL-8A | FE40 | 210~630 LPM | Aluminium / Bronze |
80 | SL-2, SL-2Q | 직사형 Ø11-19 |
| SL-8B | FB65 | 210~630 LPM | 130 | SL-3A, SL-3AQ, SL-3, SL-4Q, SL-7NR-65 |
직사형 Ø11-19 | |
| SL-8B-L | FB65(Long) | 690~2500 LPM | 200 | 직사형 Ø20-38 | ||
| SL-8C | FB65 | 690~2500 LPM | 130 | 직사형 Ø20-38 | ||
| SL-8A-S | FE40 | 210~1800 LPM | 130 | SL-7MP-40, SL-7NR-40 |
Ø20-38 | |
| SL-8D | FE65 | 1115~5000 LPM | 175 | SL-7MP-65 | Ø25-50 |
