삼화전자
1/1

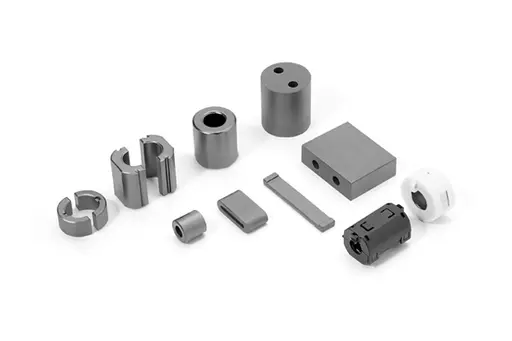

EMC Core
모델명
시리즈
Ferrite Core
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Introduction
EMC 대책용으로 다양한 형상들이 개발되었으며 임피던스특성이 우수한 재질을 사용하여 NOICE 감쇠 효과를 얻도록 설계되었다.
Features
MHz 이상의 고주파 NOISE 감쇠효과를 위해 고 임피던스 특성의 재질이 적용되며 주로 Ni-Zn계 재질이 적합하다.
Applications
Noise filter 등 EMC 대책용으로 사용된다.
| Part No. | Type | Dimensions in mm | ||
| A | B | C | ||
| OP1.6×5-0.8H | OP | 1.60+0.15/-0.00 | 5.00+0.00/-0.40 | 0.80+0.15/-0.00 |
| OP2.5×5-0.8H | OP | 2.50±0.20 | 5.00±0.20 | 0.80±0.10 |
| OP3.5×5-0.8H | OP | 3.50+0.10/-0.05 | 5.00±0.20 | 0.80+0.10/-0.00 |
| OP3.5×5-1.2H | OP | 3.50+0.10/-0.05 | 5.00±0.20 | 1.20+0.10/-0.00 |
| OP3.5x5.7-0.8H | OP | 3.50+0.10/-0.05 | 5.70+0.30/-0.00 | 0.80+0.10/-0.00 |
| OP3.5×6.5-0.8H | OP | 3.50+0.10/-0.05 | 6.50+0.00/-0.40 | 0.80+0.10/-0.00 |
| OP3.5×8-0.8H | OP | 3.50+0.10/-0.05 | 8.00±0.20 | 0.80+0.10/-0.00 |
| OP3.5×10-0.8H | OP | 3.50+0.20/-0.00 | 10.00+0.25/-0.15 | 0.80+0.15/-0.05 |
| OP3.5×12-0.8H | OP | 3.50+0.20/-0.00 | 12.00+0.25/-0.15 | 0.80+0.15/-0.05 |
| OP3.5×14-0.8H | OP | 3.50+0.20/-0.00 | 14.00+0.25/-0.15 | 0.80+0.15/-0.05 |
| OP4.5×5-1.5H | OP | 4.50+0.05/-0.20 | 5.00±0.30 | 1.50+0.20/-0.05 |
| OP5×5-2.5H | OP | 5.00+0.00/-0.20 | 5.00+0.00/-0.30 | 2.50±0.10 |
| OP8×12-3.5H | OP | 8.00±0.30 | 12.00±0.50 | 3.50±0.30 |
| OP9.5×9.5-4.75H | OP | 9.50±0.30 | 9.50±0.30 | 4.75±0.25 |
| OP9.5x20-4.75H | OP | 9.50±0.30 | 20.00±0.50 | 4.75±0.25 |
| OP9.8×7.4-6.3H | OP | 9.80±0.30 | 7.40±0.30 | 6.30±0.30 |
| OP9.8x24.5-4.9H | OP | 9.80±0.30 | 24.50+0.40/-0.50 | 4.90±0.25 |
| OP11.8×15-7.3H | OP | 11.80±0.30 | 15.00±0.50 | 7.30±0.30 |
| OP12×20-5.6H | OP | 12.00±0.40 | 20.00±0.70 | 5.60±0.20 |
| OP13.9×15-6.9H | OP | 13.90±0.40 | 15.00±0.50 | 6.90±0.40 |
| OP14.2×28.5-6.4H | OP | 14.20+0.30/-0.50 | 28.50±0.50 | 6.40±0.30 |
| OP14.2×28.5-7.2H | OP | 14.20±0.50 | 28.00±0.50 | 7.20±0.40 |
| OP14.3×23.5-8.1H | OP | 14.30±0.50 | 23.50±0.50 | 8.10±0.50 |
| OP14.3×23.5-8.2H | OP | 14.30±0.50 | 23.50±0.50 | 8.20±0.50 |
| OP16.1×17-7.9H | OP | 16.10±0.40 | 17.00±0.50 | 7.90±0.40 |
| OP16.1x17-8.9H | OP | 16.00±0.40 | 17.00±0.50 | 8.90±0.30 |
| OP16.1×28.3-7.9H | OP | 16.10±0.40 | 28.30±0.80 | 8.00±0.30 |
| OP17.5×28.5-9.5H | OP | 17.20±0.50 | 28.50±0.40 | 9.50±0.30 |
| OP18.2×25.5-11H | OP | 18.20±0.50 | 25.50±0.70 | 11.00±0.50 |
| OP18.3×28-9.7H | OP | 18.30±0.50 | 28.00+0.40/-0.80 | 9.70+0.40/-0.30 |
| OP18.4×28-9.5H | OP | 18.40±0.40 | 28.00+0.40/-0.80 | 9.50±0.40 |
| OP25.8x28.5-13H | OP | 25.80±0.50 | 28.50±0.50 | 13.00±0.30 |
| OP28×28-14.5H | OP | 28.20+0.30/-0.50 | 28.00±0.50 | 14.50±0.50 |
| Part No. | Type | Dimensions in mm | ||
| A | B | C | ||
| OR9.5*5-4.75H | OR | 9.55±0.30 | 5.00±0.30 | 4.75±0.25 |
| OR12.5×5.1-7.6H | OR | 12.50±0.40 | 5.10±0.30 | 7.60±0.40 |
| OR18.2×6.2-11H | OR | 18.20±0.50 | 6.20±0.50 | 11.00±0.50 |
| OR18.3×10-9.7H | OR | 18.30±0.40 | 10.00±0.40 | 9.70±0.40 |
| OR18.3×12-9.7H | OR | 18.30±0.40 | 12.00±0.40 | 9.70±0.40 |
| OR18.4×10-9.5H | OR | 18.40±0.40 | 10.00±0.40 | 9.50±0.40 |
| OR18.4×12-9.5H | OR | 18.40±0.40 | 12.00±0.40 | 9.50±0.40 |
| OR19×10-10H | OR | 19.00±0.50 | 10.00±0.50 | 10.00±0.50 |
| OR21×12-13H | OR | 21.10±0.50 | 11.90±0.50 | 13.20±0.50 |
| OR23.5×9.5-12.6H | OR | 23.50±0.40 | 9.50±0.30 | 12.60±0.40 |
| OR28×14-14.5H | OR | 28.00±0.50 | 14.00±0.50 | 14.50±0.50 |
| OR29×7.5-19H | OR | 29.00±0.50 | 7.50±0.50 | 19.00±0.50 |
| OR33×26-20H | OR | 33.00±0.40 | 26.00±0.30 | 20.00±0.40 |
| OR34×12-20H | OR | 33.70±0.50 | 12.00±0.40 | 20.30±0.50 |
| OR34.8×12-21H | OR | 34.80±0.40 | 12.00±0.50 | 21.00±0.40 |
| Part No. | Type | Dimensions in mm | |||||
| A | B | C | |||||
| OPS18.4×28-9.5H | OPS | 16.40±0.40 | 28.00±0.40 | 8.20±0.15 | |||
| OPS18*28-10H | OPS | 18.00±0.40 | 28.00±0.40 | 9.00±0.30 | |||
| OPS22*28-11H | OPS | 22.00±0.40 | 28.00±0.50 | 11.00±0.30 | |||
| Part No. | Type | Dimensions in mm | ||
| A | B | C | ||
| ORS25*12-15H | ORS-ⓐ | 12.50+0.20/-0.30 | 25.00±0.40 | 12.00+0.20/-0.40 |
| ORS16.4×13-8.2HA | ORS-ⓐ | 8.30+0.00/-0.30 | 16.30±0.30 | 13.30+0.00/-0.40 |
| ORS16.4×16-8.2HA | ORS-ⓐ | 8.30+0.00/-0.30 | 16.30±0.30 | 16.10+0.00/-0.40 |
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | D | E | ||
| SS29×10-8 | SS | 29.00±0.50 | 10.00±0.50 | 8.00±0.40 | 22.00±0.50 | 2.20±0.20 |
| SS29*15-8 | SS | 29.00±0.50 | 15.00±0.30 | 8.00±0.30 | 21.80±0.50 | 2.00±0.30 |
| SS31×12-4.7 | SS | 31.00±0.40 | 12.00±0.30 | 4.70±0.30 | 27.20±0.30 | 1.20±0.40 |
| SS35×12-6 | SS | 35.00±0.40 | 12.00±0.30 | 6.00±0.30 | 30.00±0.30 | 1.00±0.20 |
