제품 상세 정보
Introduction
코아에 직권을 하거나 또는 보빈을 사용하기도 한다. 인덕턴스를 통한 자장을 형성하여 센서의 역할을 하도록 설계된 제품이다.
Features

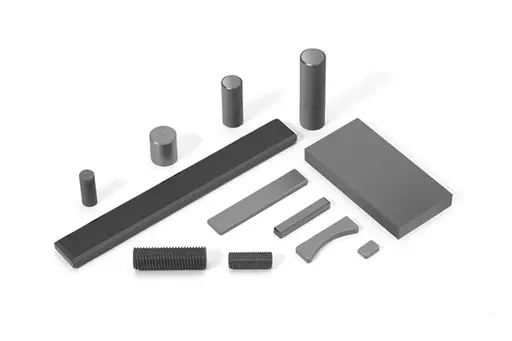

직사각형 모양 또는 원기둥 모양이 주로 사용되며 나사산을 만들어 특성을 미세 조정할 수도 있다.
Applications
스마트 키, 센서류 등에 응용된다.
| Part No. | Type | Dimensions in mm | |
| A | B | ||
| AR2.5×16 | AR | 2.45+0.10/-0.15 | 16.00±0.30 |
| AR3×10 | AR | 3.00±0.20 | 10.00±0.30 |
| AR3×17 | AR | 2.90+0.10/-0.20 | 17.00±0.30 |
| AR4×20 | AR | 4.00+0.00/-0.30 | 20.00±0.50 |
| AR6×30 | AR | 6.00+0.00/-0.30 | 30.00±0.30 |
| AR8×15 | AR | 8.00±0.20 | 15.00±0.20 |
| AR3×25 | AR | 3.00+0/-0.05 | 25.00+0/-1.00 |
| AR3.5×15 | AR | 3.00+0/-0.25 | 15.00+0/-0.80 |
| AR4×12.5 | AR | 4.00+15/-0.25 | 12.50±0.25 |
| AR4×15 | AR | 4.00+15/-0.25 | 15.00±0.25 |
| AR4×17.5 | AR | 4.00+15/-0.25 | 17.50±0.30 |
| AR4×25 | AR | 3.80±0.20 | 25.00±0.25 |
| AR5×10.5 | AR | 5.00±0.20 | 10.50±0.25 |
| AR5×15 | AR | 5.00±0.20 | 15.00±0.20 |
| AR5×20 | AR | 5.00+0/-0.30 | 20.00±0.30 |
| AR5×25 | AR | 5.00+0/-0.30 | 25.00±0.40 |
| AR5×30 | AR | 5.00+15/-0.25 | 3.00±1.00 |
| AR5.6×14 | AR | 5.00±0.10 | 14.00±0.20 |
| AR6×10 | AR | 6.00+0/-0.30 | 10.00±0.20 |
| AR6×15 | AR | 6.00+0/-0.30 | 15.00±0.20 |
| AR6×20 | AR | 6.00+0/-0.30 | 20.00±0.30 |
| AR6×25 | AR | 6.00+0/-0.30 | 25.00±0.30 |
| AR6.5×12.4 | AR | 6.50+0/-0.20 | 12.40+0/-0.40 |
| AR7.5×20 | AR | 7.50+0/-0.50 | 20.00±0.20 |
| AR8×20 | AR | 8.00±0.20 | 20.00±0.30 |
| AR8×25 | AR | 8.00+0.10/-0.30 | 25.00±0.50 |
| AR9.4×34 | AR | 9.40+0.15/-0.25 | 34.00±0.50 |
| AR10×12 | AR | 10.00±0.30 | 12.00±0.30 |
| AR10×20 | AR | 9.80±0.30 | 20.00±0.50 |
| AR19×23 | AR | 19.30±0.50 | 23.00±0.40 |
| AR20×16.7 | AR | 20.50±0.50 | 16.70±0.40 |
| Part No. | Type | Dimensions in mm | ||
| A | B | C | ||
| AP8×10×4 | AP | 8.00±0.15 | 10.00±0.20 | 4.00±0.15 |
| AP40×8×2 | AP | 40.00±1.00 | 8.00±0.10/-0.30 | 2.00±0.10/-0.30 |
| AP41×41×9.5 | AP | 41.00±0.50 | 41.00±0.50 | 9.50±0.30 |
| AP50×30.5×12T | AP | 50.00±0.50 | 30.50±0.50 | 12±0.30 |
| AP50×31×10 | AP | 50.00±0.50 | 31.00±0.50 | 10.00±0.30 |
| AP80×12×5 | AP | 8.00+0/-1.30 | 12.00±0.25 | 5.00+0/-0.50 |
| AP100×12×5 | AP | 100.00+0/-1.50 | 12.00±0.30 | 5.00+0/-0.50 |
| AP160×20×4 | AP | 160.00±2.00 | 19.50±0.50 | 4.00+0/-0.50 |
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | ||||
| I4316S | I | 16.00+0.15/-0.25 | 4.00±0.15 | 3.00±0.15 | ||
| I4324S | I | 23.50±0.30/-0.20 | 4.00±0.20 | 3.00±0.20 | ||
| I4335S | I | 35.20±0.20 | 4.00±0.20 | 2.50±0.20 | ||
| I4416S | I | 16.00+0.15/-0.25 | 4.00±0.20 | 4.00±0.20 | ||
| I4430L | I | 30.20±0.20 | 4.00±0.20 | 4.00±0.20 | ||
| I4430S | I | 30.00±0.30 | 4.00±0.20 | 4.00±0.20 | ||
| I93 | I | 93.00±1.80 | 27.50±0.50 | 30.00±0.60 | ||
| I100*25*25A | I | 101.60±2.00 | 25.40±0.80 | 25.40±0.80 | ||
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | ||||
| SD50*12*3T | SD | 50.00±0.4 | 12.00±0.15 | 3.00±0.06 | ||
| SD53*12*3T | SD | 53.00±0.4 | 12.00±0.15 | 3.00+0.50/-0.10 | ||
| SD60*6*2T | SD | 60.00+0.0/-0.40 | 6.00±0.15 | 2.00±0.10 | ||
| SD60*15*5T | SD | 60.00±0.7 | 15.00±0.3 | 5.00+0.10/-0.20 | ||
| SD60*20*4T | SD | 60.00±0.7 | 20.00±0.3 | 4.00±0.15 | ||
| SD80*15*5T | SD | 80.00±0.7 | 15.00±0.3 | 5.00+0.10/-0.20 | ||
| SD100*16*9 | SD | 101.00+0.50/-0.20 | 16.00±0.30 | 9.00±0.30 | ||
| SD100*25*4.5 | SD | 100.00+0.50/-0.20 | 25.00±0.30 | 4.50±0.30 | ||
| SD100*25*5T | SD | 100.00±1.00 | 25.00±0.30 | 5.00±0.30 | ||
| SD100*25*8T | SD | 100.00±1.00 | 25.00±0.30 | 8.00±0.30 | ||
| SD105*15*5T | SD | 105.00±0.8 | 15.00±0.2 | 5.00±0.2 | ||
| Part No. | Type | Dimensions in mm | ||||
| A | B | C | D | E | ||
| OS5.75×15-2.6HH P1.0 | OS | 5.75±0.03 | 15.00±0.30 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS5.8×10-2.6HH P1.0 | OS | 5.80±0.03 | 10.00±0.30 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×10-2.6HH P0.75 | OS | 6.00±0.03 | 10.00±0.50 | 2.60+0.15/-0.05 | 3.00 ref. | 0.75±0.03 |
| OS6×10-2.6HH P1.0 | OS | 6.00±0.03 | 10.00±0.50 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×15-2.6HH P1.0 | OS | 6.00±0.03 | 15.00±0.60 | 2.60+0.15/-0.05 | 3.00 ref. | 1.00 ref. |
| OS6×15-2.6HH P0.75 | OS | 6.00±0.03 | 15.00±0.25 | 2.60+0.15/-0.05 | 3.00 ref. | 0.75±0.03 |
