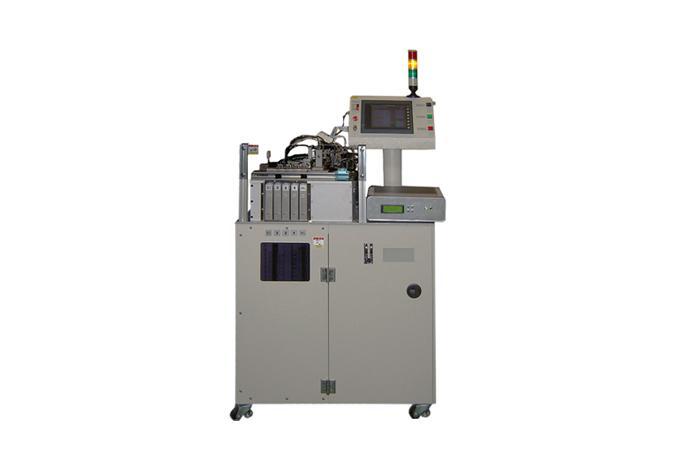

JS-202 (AUTO E/T HANDLER)
Features
•Product alignment(parts feeder, tray, etc)
•Product transfer & supply part(linear feeder)
•Pick & Place/index table
•Product direction conversion part(option)
•Test probing system
•Un-loader for bin sorting
•Controller(touch screen, PLC)
Options
•10 Bin(24 Bin), Marking (Ink or Laser)
•Camera
Configuration
•Automatic product alignment, supply, test and sorting
•Basic 5Bin(NG, rank, double-check) sorting
•Stable inspection not affecting products based on index table type
•Low jam rate & high stability and operability (over 98%)
•Final inspection (blank/slack count), NG-data indication
•Highly readable control system, touch screen indication
Connection
Specification
|
Applicable |
SMD |
|
Speed |
¾à 2.5k/hr ÀÌ»ó |
|
Parts Feeding Type |
Bowl Feeder (STD) |
|
Work Loading Type |
Inline Feeder |
|
Direction Check |
Smart Sensor (STD) |
|
Turn over System |
90° ¶Ç´Â 180° |
|
Measurement System |
Probing&Tester Interface |
|
Item |
Electrical property |
|
Bin-Sorting |
Pick&Place(STD),5~10Bin |
|
Vacuum Source |
Built in Vacuum pump&Ejector |
|
Power Source |
AC220V-1ph-60/50Hz |
|
Air Source |
5~9kg/§²G |
|
Dimensions (mm) |
1000Wx550Dx1550H |
|
Weight |
¾à 150 kgs |
