SPECIFICATION

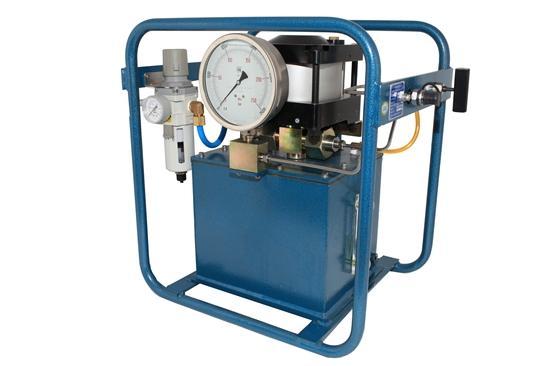

▸The unit is powered by air, and delivers a maximum hydraulic pressure of 2350bar.

▸Analogue gauge, readings class 1.0.

▸Max. Flow 0.5l/min with app. 2.51cc displacement per cycle and 199 cycles per min.

▸Tank capacity app. 17 liter.

1. MODEL NO. : AHP - 3000

2. AREA RATIO : 350 : 1

3. ACTUAL AREA RATIO : 336 : 1

4. WORKING PRESSURE : MIN. 2350BAR AT 7BAR AIR INPUT

5. AIR CONSUMPTION : 300~1050 LITER/MIN. AT 7BAR AIR INPUT

6. PUMPING SPEED : APPROX. 199 CYCLES/MIN. AT 7BAR AIR INPUT

7. DISPLACEMENT PER CYCLE : 2.51㎤

8. MAX. FLOW AT NO OUTPUT PRESSURE : MIN. 0.5 LITER/MIN. AT 7BAR AIR INPUT

9. TANK CAPACITY : 17 LITER

10. AIR INLET PORT : 1/2″ BSP ONE TOUCH COUPLER

11. LIQUID OUTLET PORT : 1/4″ MALE (CEJN 10.125.5252)

12. APPROX. DIMENSION : 490m x 400mm x 545mm

13. WEIGHT : 45Kg
