SPECIFICATION

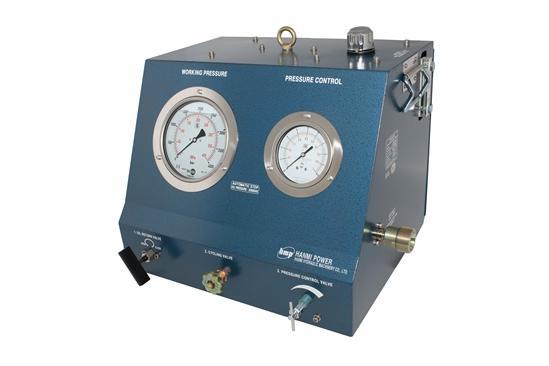

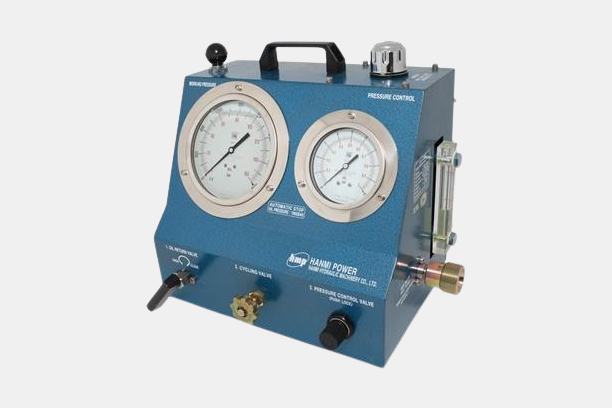

▸Twin-pump hydraulic Power-Supply, designed for fast operation of high-pressure tool series, providing up to 3500bar hydraulic pressure at 7bar air inlet pressure.

▸MAN 2200bar tool series.

▸Analogue gauge, readings class 1.0.

▸Max. Flow 0.7l/min with app. 3.3cc displacement per cycle and 220 cycles per min.

▸Tank capacity app. 8.0 liter.

▸Safety release valve is adjusted to max 2500bar.

1. MODEL NO. : AHP - 3500

2. AREA RATIO : 531 : 1

3. ACTUAL AREA RATIO : 500 : 1

4. WORKING PRESSURE : MIN. 3500BAR AT 7BAR AIR INPUT

5. AUTOMATIC PRESSURE STOP : 2500 BAR (which is preset by the factory)

6. AIR CONSUMPTION : 300~1050 LITER/MIN. AT 7BAR AIR INPUT

7. PUMPING SPEED : APPROX. 220 CYCLES/MIN. AT 7BAR AIR INPUT

8. DISPLACEMENT PER CYCLE : 3.3㎤

9. MAX. FLOW AT NO OUTPUT PRESSURE : MIN. 0.7 LITER/MIN. AT 7BAR AIR INPUT

10. TANK CAPACITY : 8.0 LITER

11. AIR INLET PORT : 1/2″ BSP FEMALE WITH INCREASE TO M42 ADAPTER

12. LIQUID OUTLET PORT : 1/4″ MALE (CEJN 10.125.6203)

13. APPROX. DIMENSION : 500m x 420mm x 475mm

14. WEIGHT : 42Kg
