SPECIFICATION

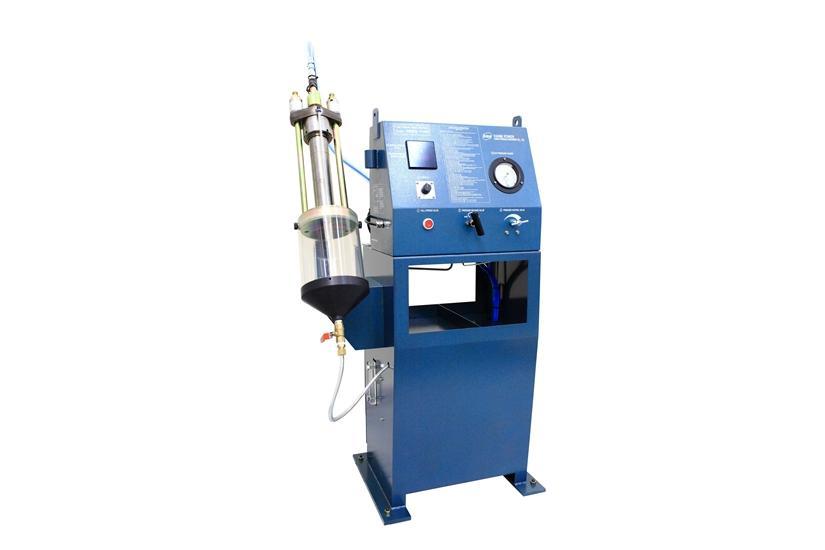

The HDFD-1100 differs in several ways from the standard types: VTU-1100N MK-Ⅰor MK-Ⅱ but the main feature is that the new pump is electronically controlled.

The atomizing test cannot be executed.

The pump unit is equipment with a digital display. It shows the working pressure, opening pressure and closing pressure with an accuracy of +/- 1bar.

Featuring

▸ Automatic Slide Fuel Valve protection system

▸ Precise digital read-out (± 1bar)

▸ Separate display for data collection (opening/venting pressure)

▸ Backward valve compatibility

▸ One unit test all fuel-injection valves aboard.

1. MODEL NO : HDFD-1100

2. OUTPUT PRESSURE : 0~1300BAR AT 10BAR AIR INPUT

.0~900BAR AT 7BAR AIR INPUT

3. AIR CONSUMPTION : 60.5LITER/CYCLE AT 10BAR INPUT

. 44LITER/CYCLE AT 7BAR INPUT

4. MAX. FLOW AT NO PRESSURE : APPROX. 1.2LITER/MIN. AT 7BAR AIR INPUT

. AND NO OUTPUT PRESSURE

5. DISPLACEMENT PER CYCLE . : 17.2㎤

6. PUMP SPEED : APPROX. 60 CYCLE/MIN. AT 7BAR AIR INPUT AND

. NO OUTPUT PRESSURE

7. OIL TANK CAPACITY : 6 LITER

8. CLASSIFICATION : GAUGE/CLASS 1.0. DISPLAY/CLASS 0.2

9. WEIGHT : 115KG

10. DIMENSION : 885 X 638 X 1700

11. VOLTAGE SUPPLY : SINGLE PHASE 115~230VAC
