SPECIFICATION

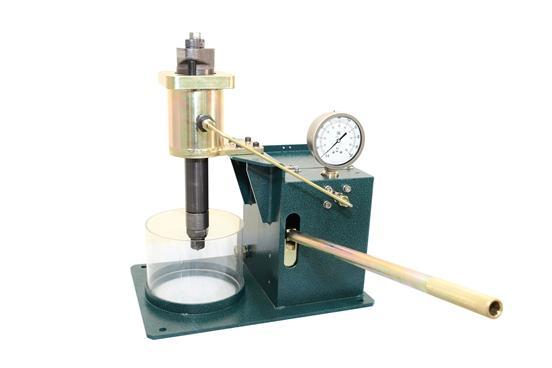

This type of test rig is now standard maintenance equipment for 4-stroke Diesel Fuel valves

▸Test of fuel injectors from 4-stroke engines

▸One unit test all fuel-injection valves aboard (H21/32,H25/33,H17/28)

▸The unit powered by manual pump, maximum hydraulic pressure of 600bar/60Mpa.

▸Analogue gauge, readings class 1.0

▸The following test control procedures can be performed :

∙Opening pressure

∙Atomizing test

1. MODEL NO. : VTU-H003

2. MAX. OUTPUT PRESSURE : 600BAR / 60Mpa

3. OIL OUTPUT VOLUME : 0.8㎤ / STROKE

4. OIL TANK CAPACITY : 5.0 LITER

5. GAUGE : ANALOGUE / CLASS 1.0

6. WEIGHT : 33 KG

7. DIMENSION (W x D x H) : 470mm X 320mm X 477mm
