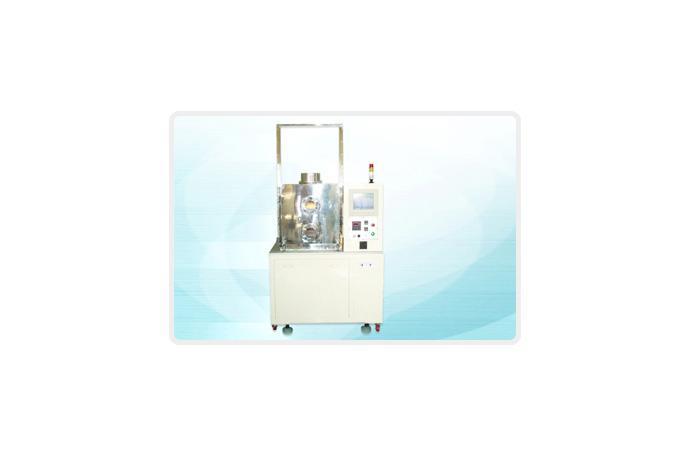

product Image
Filling Machine (Oil Pump)
Model Name
-
Series
Cell Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32861
Product Name
Filling Machine (Oil Pump)
Model Name
-
Size
-
Weight
-
Product Details

This equipment is to inject the liquid crystal into the LCD. Vacuum and vent time can be controlled on touch panel.



SPECIFICATIONS

EQUIP. DIMENSION

1,120(W)mm×700(L)mm×2200(H)mm

WEIGHT

500Kg

STICK SIZE

300 or 470 * 140H (T.B.D)

STICK THICKNESS

(0.3~0.7) x 2 mm

STICK JIG

28 Stick/1 JIG

STICK JIG LOADING

4 jig / 1chamber (2 floor)

CHAMBER SIZE

746 x 484 x 699H

T/TIME

112 Stick/20~30min

VACUUM PRESSURE

3x10^-3 Torr(0.39Pa) chamber interior vacuum

UTILITY

MAIN POWER:3Ø, 220V±10%, 3KW, 50/60Hz

Air  : 5~6 Kg/cm2 , 60ℓ/min
N2  : 3~41g/cm2 , 5ℓ/min
