product Image

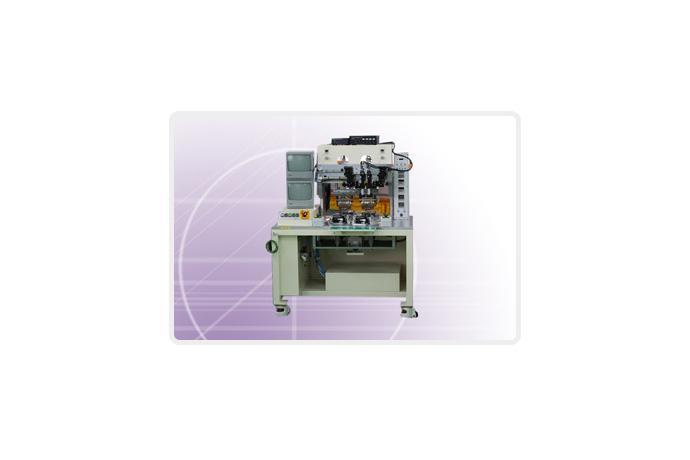

FPC Bonder (Turn) 2H-4S
Model Name
-
Series
Module Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32857
Product Name
FPC Bonder (Turn) 2H-4S
Model Name
-
Size
-
Weight
-
Product Details

This machine is to bond the ACF attached panel with manually aligned FPC film by heat and pressure. Turn type and 2 head/ 4 stage type.


1. 4 turning stage and 2 bonding head installed.
2. Pressure and temperature is maintained evenly.
3. Use the micro speed cylinder to control the pressure precisely.
4. Compact machine size.
5. Zoom type CCD camera applied for various FPC


SPECIFICATIONS

EQUIP. DIMENSION

1100(W)mm×670(L)mm×1830(H)mm

WEIGHT

550Kg

PANEL SIZE

1.5 ~ 3.5 inch

PANEL THICKNESS

(0.3x~1.1)x2mm

PATTERN PITCH

80㎛(Max)

BONDING TEMP.

RT~300℃(Controller)

BONDING ACCURACY

±12~15㎛

TACT TIME

10~12sec(Bonding time 13sec)

BONDING PRESSURE

2.5~80kgf

ALIGNMENT

X, Y, Θmanual stage

PRESSURE METHOD

Micro Speed Cylinder (Ø50*20st) & Precise Regulator

UTILITY

MAIN POWER: 1Phase, 220V, 4.0KW, 50/60Hz

AIR : 5~6 Kg/cm2, 300L/min, Ø10 Hose
