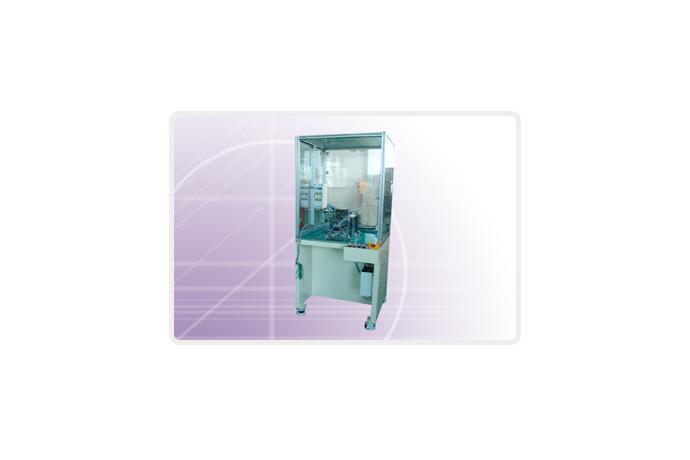

product Image
Cell Laminator
Model Name
-
Series
TSP Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32865
Product Name
Cell Laminator
Model Name
-
Size
-
Weight
-
Product Details

This machine is to laminate the film on the film semi-automatically. PC (window) on the turn stage and ITO film on the film stage for laminating.

1. Simple structure for easy operation.
2. Laminating pressure can be controlled to avoid the bubble generation. (elector-pneumatic regulator)
3. Touch screen and servo motor applied for X, Y Axis to adjusting stage movement.



SPECIFICATIONS

EQUIP. DIMENSION

700W x 675L X1,200H / mm

WEIGHT

180Kg

FILM SIZE

2.5”~4.0”

STAGE SIZE

100 x 80mm

ATTACH ACCURACY

±0.2mm

ATTACH ROLL SIZE

Ø11-80Lmm

TACT TIME

16~18 sec

UTILITY

MAIN POWER:1Ø, 220V, 1.0KW, 50/60Hz

Air  : 5~6Kg/㎠, Ø12Hole, 250L/min
