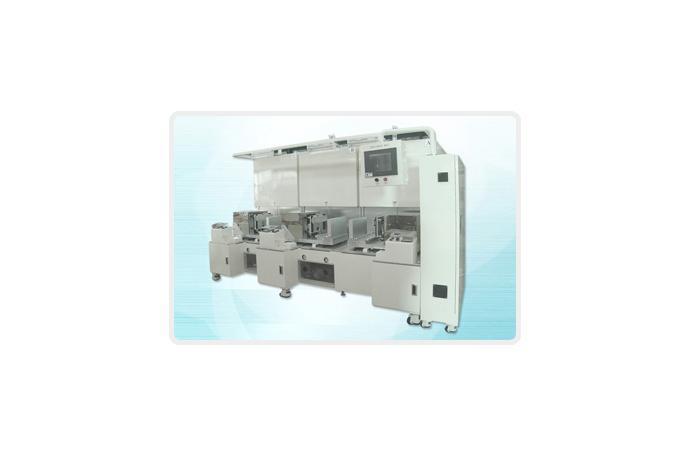

product Image
END Seal Machine (3Head)
Model Name
-
Series
Cell Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32862
Product Name
END Seal Machine (3Head)
Model Name
-
Size
-
Weight
-
Product Details

This machine is to seal the LC filling hole after LC filling process. To the precise cell gap, you can separate the process by 10 step and each step controlled automatically as you want. Use the load cell for precise pressure control and FUSION UV system applied for cure the bond.


SPECIFICATIONS

EQUIP. DIMENSION

3,380(W)mm×2,250(L)mm×2,270(H)mm

WEIGHT

2000Kg

STICK SIZE

0.8"~8" (370 STICK)

STICK THICKNESS

(0.3~1.1) x 2mm

TACT TIME

30~35min

PRESSURE METHOD

MICRO SPEED CYLINDER(Ø125)

PRESSURE CONTROL

Electro-pneumatic regulator, load cell

PRESS CONTROL UNIT, RANGE

5kgf(min),10~500kgf

CONTROL

PLC & Touch panel

UTILITY

MAIN POWER:220V±10%, 8.0KW, 50/60Hz

AIR : 5~6Kg/㎠ , 300L/min, Ø10Hose
