Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32860
Product Name

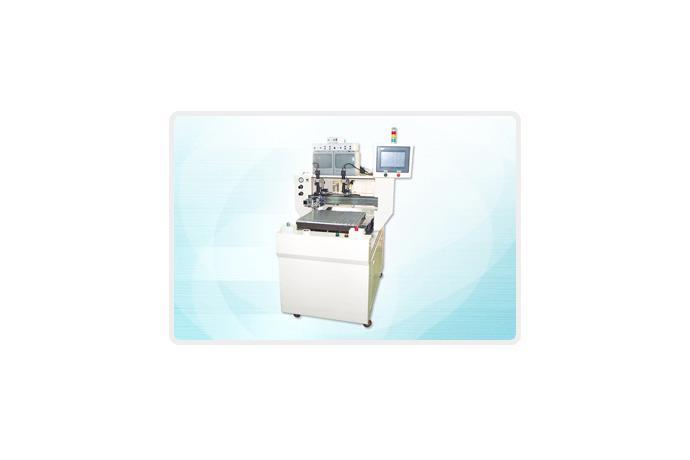

Single Scribe
Model Name
-
Size
-
Weight
-
Product Details

This machine is to scribe the glass fixed on the stage by vacuum with single wheel as set X, Y size. (Wheel and stage move together)


SPECIFICATIONS

EQUIP. DIMENSION

1,000(W) x 1,285(L) x 1,585(H)mm

WEIGHT

500Kg

GLASS SIZE

30x50(MIN)/370x480(MAX)

GLASS THICKNESS

(0.3~1.1) x 2mm

STAGE SIZE

510x460mm

CUTTING SIZE

X-AXIS : 4 SIZE , Y-AXIS : 4 SIZE

GLASS GUIDE

3 Position Guide Pin Type

CAPACITY

400x450mm Glass/ 40~50 sec
(DIFFERENT ACCORDING TO CUTTING QUANTITY)

SCRIBING ACCURACY

±0.04mm

WHEEL SPEC

Ø2.5 x Ø0.8 x 0.65t x 120° <tungsten carbide>

UTILITY

MAIN POWER:220V±10%, 2.0KW, 50/60Hz

AIR : 5~8Kg/cm2,
