product Image

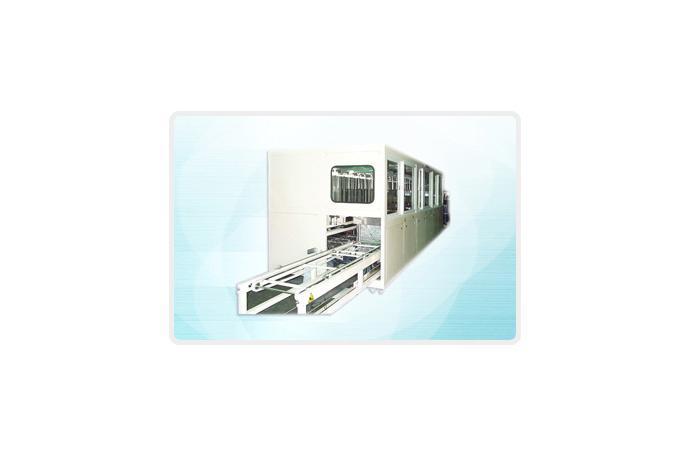

Cell Cleaning Machine (7Sump)
Model Name
-
Series
Cell Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32863
Product Name
Cell Cleaning Machine (7Sump)
Model Name
-
Size
-
Weight
-
Product Details

This machine is designed to wash LCD cell and dirt left on glass surface with automatic basket transferring. (Dipping, Ultra-sonic and Dehydrating)


SPECIFICATIONS

EQUIP. DIMENSION

9,800(W)mm×2,050(D)mm×2,450(H)mm

SERVICE TANK

100L

ULTRASONIC

B.L.T 1000W 40KHZ x 5SET

TANK ARRANGEMENT

Detergent : 2sump , Shower : 1sump , Rinse : 3sump , Vapor : 1sump

DETERGENT MIXING

Auto mix (Brix densitometer) -> Option

LOADING / UNLOADING

Chin conveyor type

BASKET UP / DOWN

Chain sprocket & Geared motor

DRY

Hot blower

COOLING

Dry air , Fan

UTILITY

MAIN POWER:3Ø, 220V±10%, 120KW,

AIR : 4Kg/㎠ , 2000NL/Min

Water :  1200L / H (1 ~ 1.5Kg/㎠)
