Product Name

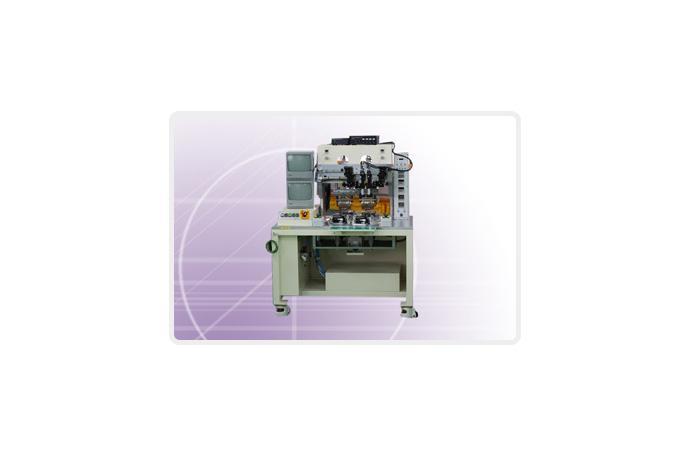

FPC Bonder (R-L)
Model Name
-
Size
-
Weight
-
Product Details

This machine is to bond the ACF attached panel with manually aligned FPC film by heat and pressure. (Left-Right moving type, 2 head / 2 moving stage)



SPECIFICATIONS

EQUIP. DIMENSION

900(L)mm×650(W)mm×1700(H)mm

WEIGHT

400Kg

LCD GLASS SIZE

30~80(L), 20~70(W)

LCD GLASS THICKNESS

(0.3~1.1)*2mm

PATTERN PITCH

50 ㎛ (max)

CAMERA SYSTEM

F.O.V(FIELD OF VIEW) : X=1.5~3mm

BONDING ACCURACY

±10~13㎛

BONDING PRESSURE

1.5~35 Kgf,  Temp.: RT~350℃

TACK TIME

16~18sec(bonding time 13sec)

UTILITY

MAIN POWER:220V±10%,1.0KW, 50/60Hz

AIR : 5~6 Kg/cm2, 350L/min, Ø8 Hose
