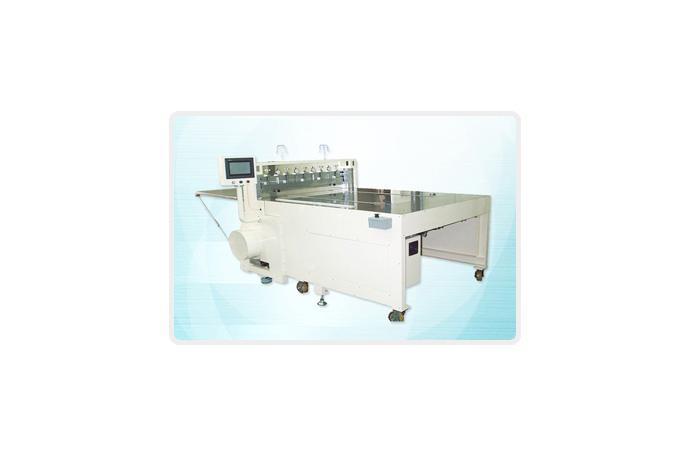

Polarizer Cutting Machine
Model Name
-
Series
Module Line
View All
Data
-
Manufacturer information
provider logo
Yujin Discom

LCD, OLED, PDP, VFD, Touch Panel Semi conductor equipment

Problem with product info?
Update request
Manufacturer
Yujin Discom
Product Type
Machine
Brand
-
SKU
32846
Product Name
Polarizer Cutting Machine
Model Name
-
Size
-
Weight
-
Product Details

This machine is to cut the polarizer film by pitch feeding. For an easy operation and setting, use the touch panel and the servo motor on the moving part for high accuracy. You can change the model easier with the data memory function.



SPECIFICATIONS

EQUIP. DIMENSION

1,830W x 3,070L X1,550H / mm

WEIGHT

2000Kg

CUTTING SIZE

1200 x 1200mm (Max size)

CUTTING THICKNESS

0.1~1mm

CUTTING SPEED

16~50cuts/min

CUTTING ACCURACY

±0.1mm

MODEL MEMORY

90 model

BLADE SPEC

1214x18.5x0.25t

UTILITY

MAIN POWER:3Ø, 220V±10%, 2.5KW, 50/60Hz

Air  : 5~6Kg/㎠, Ø8Hole, 20L/min
